• IOT Energy Monitoring System/EMS
    1.Wireless Power Monitoring System/PMS
    2.Real-time Monitoring of Electricity
    3.Support APP & WEB Data Checking
    4.Energy Report,Fault Alarm
    5.Easy Installation, No Need Gateway Debugging
  • Building Energy Management System
    1.Building Energy Monitoring System/EMS
    2.Provide Data Support for Save Energy
    3.Energy Report, Fault Alarm,Energy Flow Chart
    4.Monitor Energy by Dept, Region, Energy Types
    5.Support APP & WEB Data Checking
  • Wireless Temperature Monitoring Solution
    1.Applied in Switchgear, Rain Main Unit etc.
    2.Monitor Temp of Electric Contacts like Busbar, Cables etc.
    3.Have Battery Powered & CT 5A start Type
    4.433Mhzs Wireless Signal

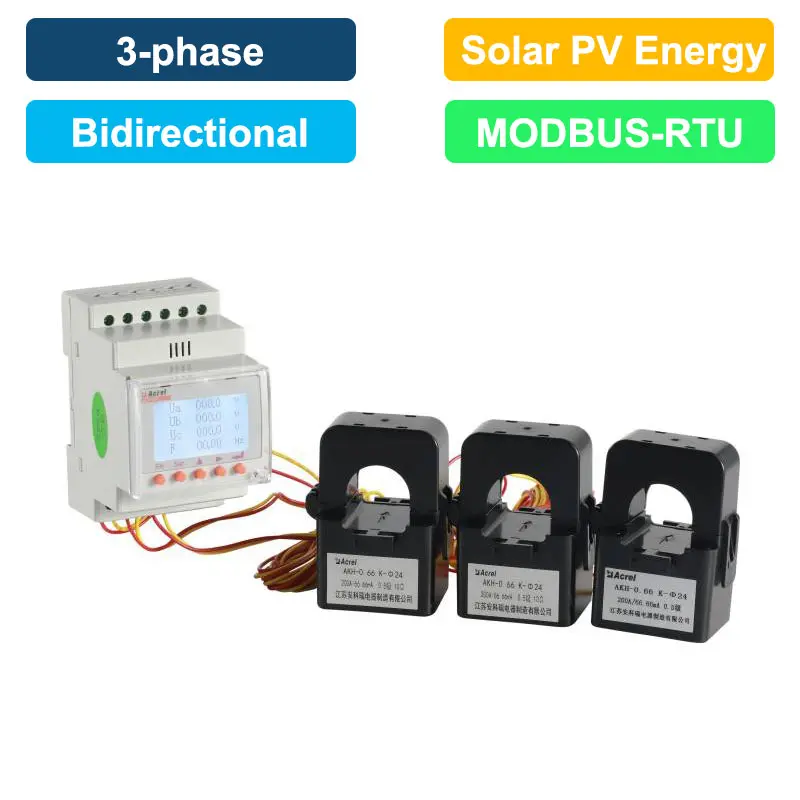

  • Solar Power Monitoring System
    1.Real Time Monitor PV station State, Electric Generation
    2.Monitor PV modules Distribution
    3.Monitor Inverter State/Environment/AC Power Distribution Cabinets etc.
    4.Analyze Daily Power Generation Trend

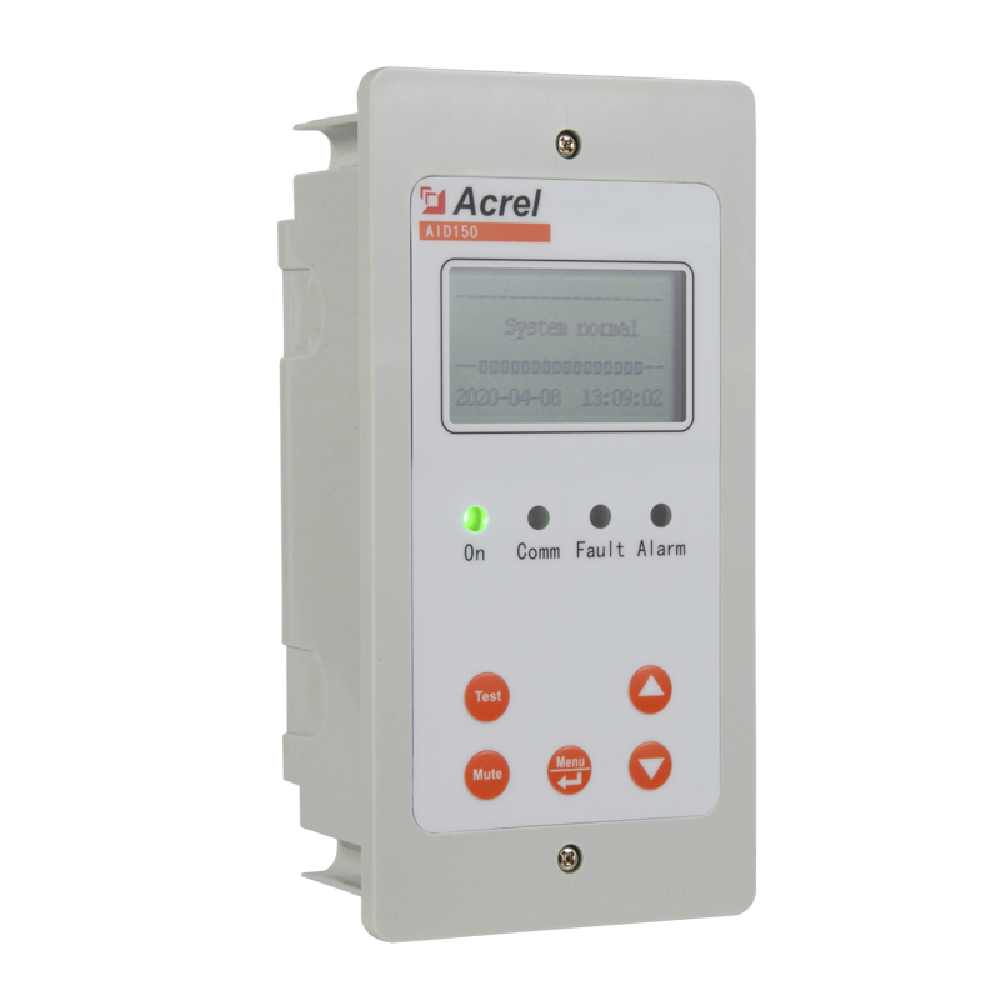

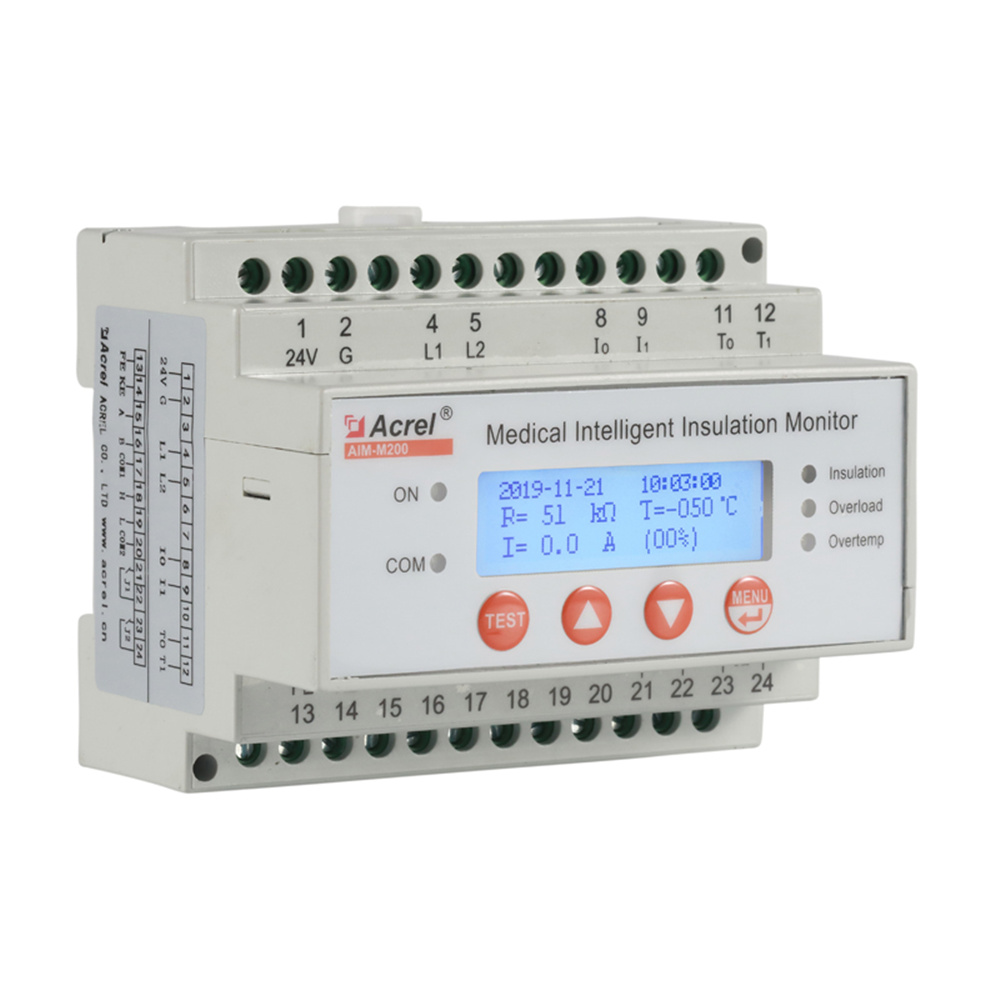

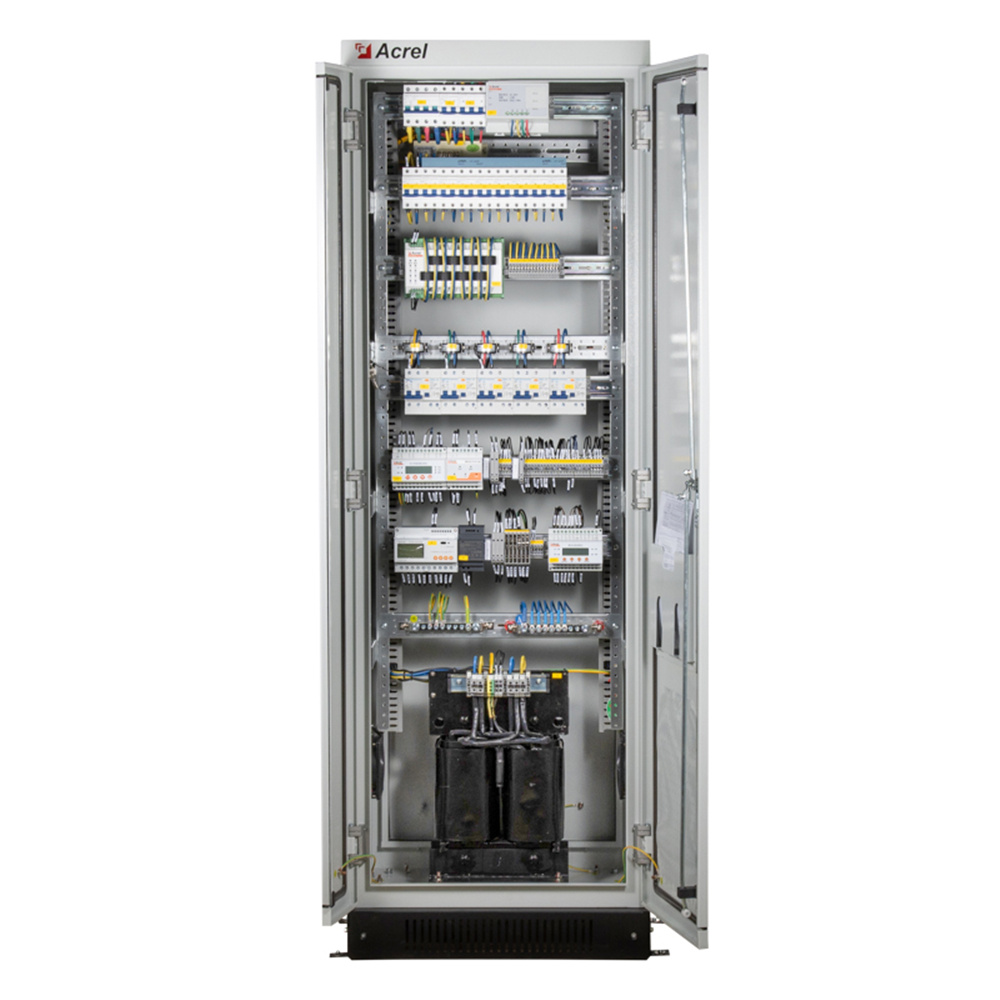

  • Hospital Isolation Power Supply System
    1.Apply in Operating Room, ICU/CCU
    2.Provide Isolation Panels/ Cabinets
    3.Monitor position be customized
    4.Support multi-site display /multi-site multi-set centralized display
  • Prepayment Cloud Platform/ Prepaid System Solution
    1.Online Topping Up
    2.Credit Balance Checking
    3.Low Balance Alarm
    4.Remote On-off Control
OUR COMPANY
Jiangsu Acrel Electrical Manufacturing Co., LTD., the manufacturer base located in Jiangyin, Wuxi City,its headquarter, Acrel Co., Ltd.[stock code: 300286.sz] is a high-tech enterprise integrates R&D, production, sales and service, since its establishment, it committed to provide users with energy efficiency management and power security system solutions. Acrel Electric has a complete production line from cloud platform software to sensors. At present, more than 8,000 sets of various solutions are running all over the country, help users to realize the visual management of energy consumption, provide users the energy data services, and escort users an efficient and safe energy consumption.

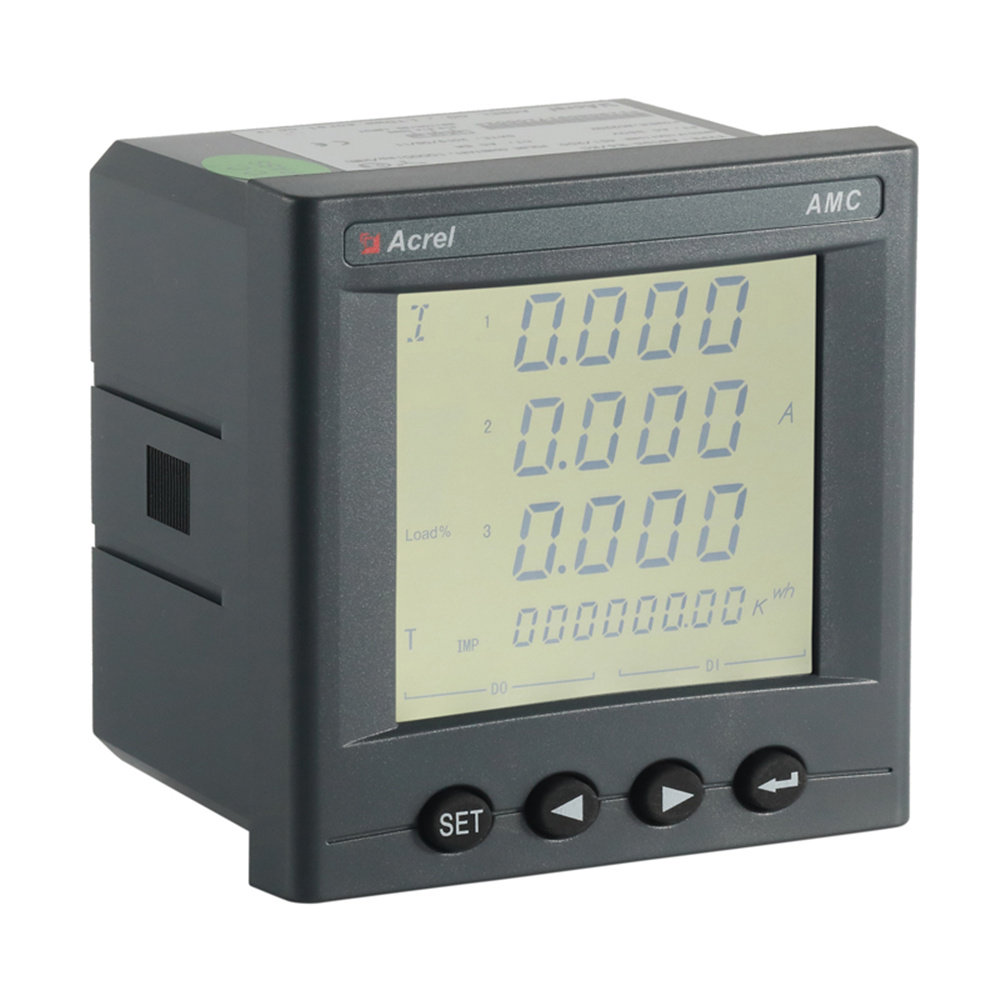

  • AMC 3-Phase Cheap Panel Energy Meter
    1. Measurement: 3-phase AC kWh, kVarh, I, U, kW, kVar, Hz, cosφ and etc
    2. Accuracy: 1% (KWh); 0.5% (Active Power)
    3. Rated Voltage: 690V 400V AC L-L (direct connect); 100V AC L-L (via PTs)
    4. Rated Current: 5A AC or 1A AC (via CTs)
    5. Power Supply: 85~265V AC/DC; 24V or 48V DC
    6. Communication: RS485 (MODBUS-RTU)
    7. SOE Funciton: Event&Demand&Extremum Record
    8. Harmonic Measurement: 2~31st and total Harmonic
    9. Analog Output: 4~20mA DC or 1~5V DC
    10. DI/DO Function: 2/4-channel DI&2-channel DO
    11. Standard&Certificate: CE Certificates
    View Details inquiry

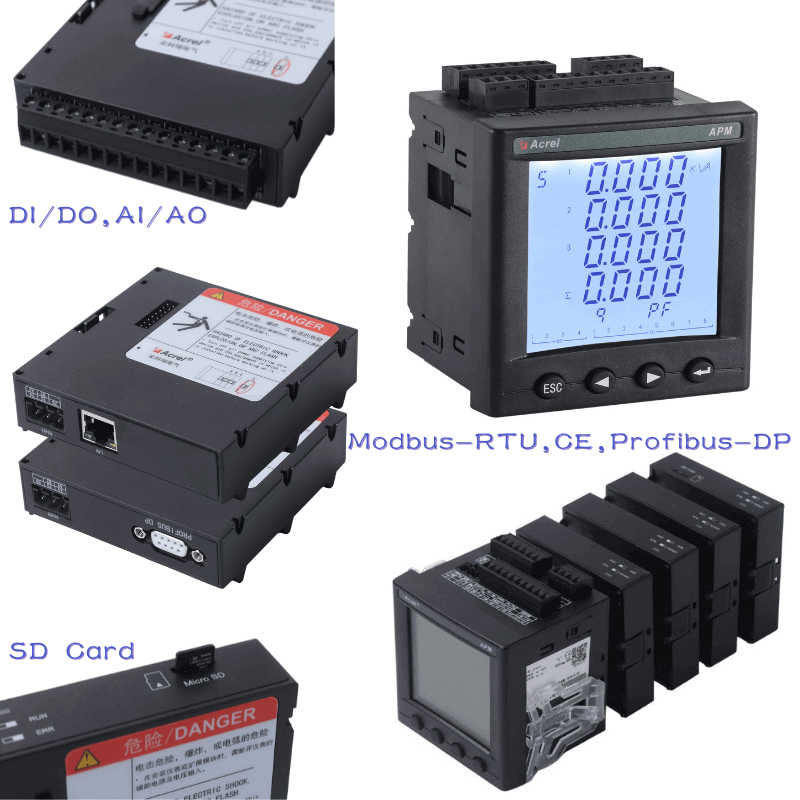

  • APM8XX 3-Phase Multifunciton Energy Meter
    1. Measurement: 3-phase kWh, kVarh, kW, I, U, Hz, Cosφ, Current&Voltage Unbalance, 2~63rd Harmonic, Real-time&Max Demand, Zero-sequence Current, 4-quadrant Energy and etc
    2. Current Rating: -/5A AC; -/1A AC (According to CTs)
    3. Voltage Rating: 100V, 110V, 400V, 690V AC
    4. Frequency: 45~65Hz
    5. Accuracy: High Accuracy Up to 0.2S (Optional)
    6. Communication (Main Body): RS485 (MODBUS-RTU)
    7. Communication (Expanded): PROFIBUS-DP; Ethernet; Secondary RS485
    8. Extra Function: 8DI/2DO; 8AI/4AO; SOE (with standard 8GB SD Card,data logger); Multi-rate
    9. Display: LCD Display
    10. Dimension: 96*96*90mm (L*W*H)
    11. Installation: Panel Embedded (Cut-out --92*92mm)
    12. Power Supply: 85~265V AC/DC; 115~415V AC/DC
    13. Standard&Certificate: CE
    View Details inquiry

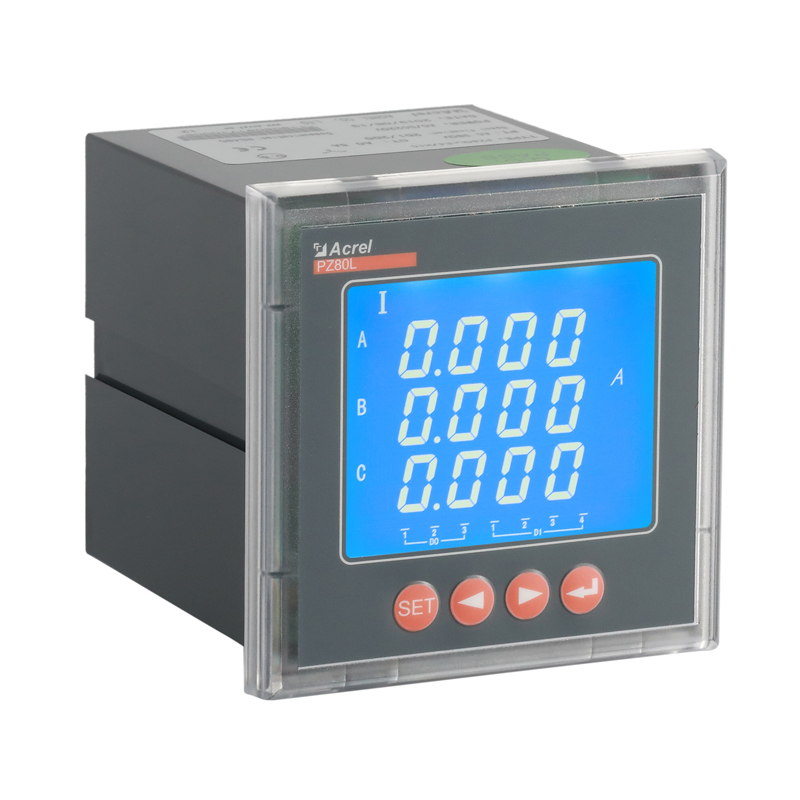

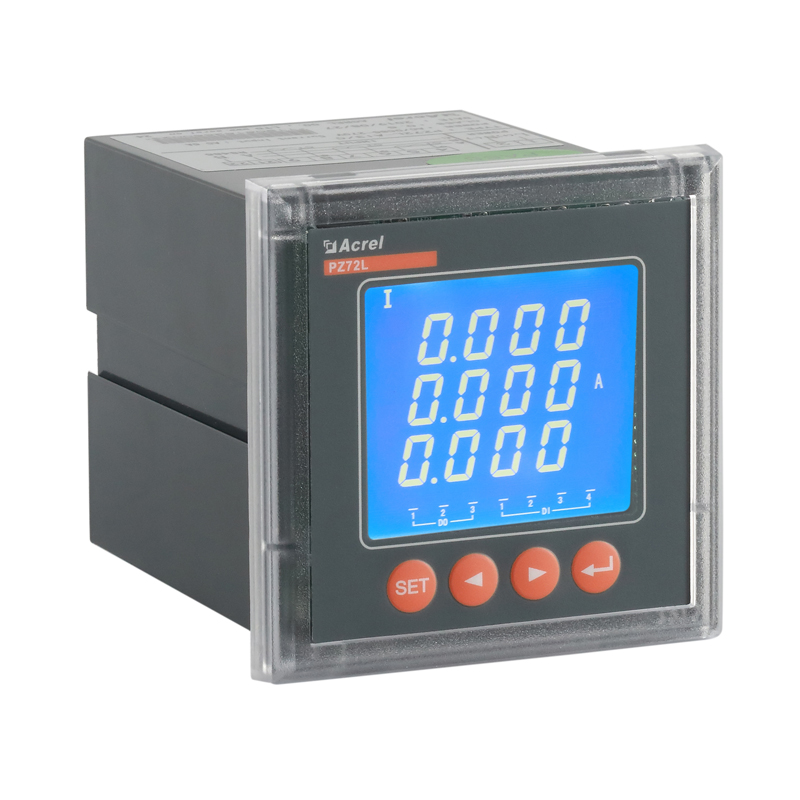

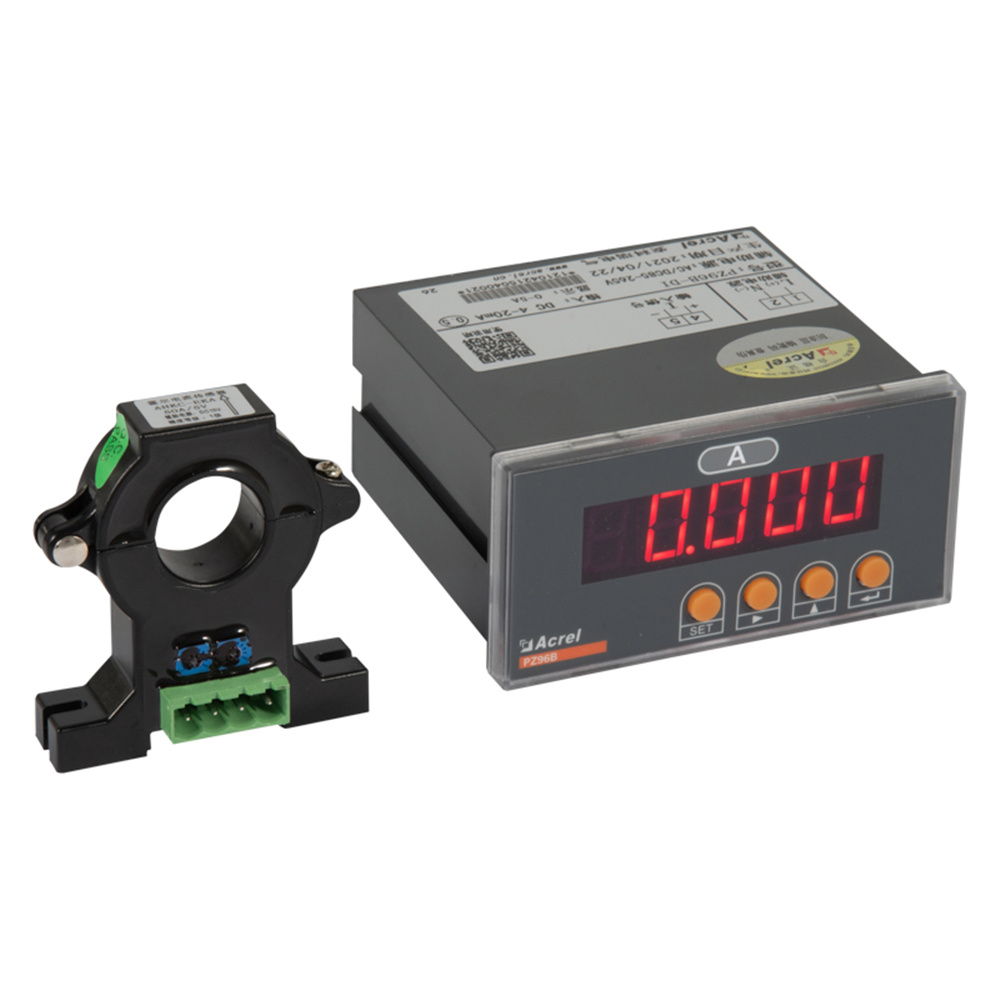

  • PZ 1-Phase &3-Phase Volt Meter/Ammeter
    1. Accuracy: 0.5%
    2. Communication: RS485 (MODBUS-RTU)
    3. DI/DO Function: 2/4-Channel DI&2-Channel DO
    4. Standard&Certificate: CE Certificates
    View Details inquiry
  • PZ 1-Phase&3-Phase Panel Energy Meter
    1. Accuracy: 0.5%
    2. Communication: RS485 (MODBUS-RTU)
    3. DI/DO Function: 2/4-Channel DI&2-Channel DO
    4. Standard&Certificate: CE Certificates
    View Details inquiry

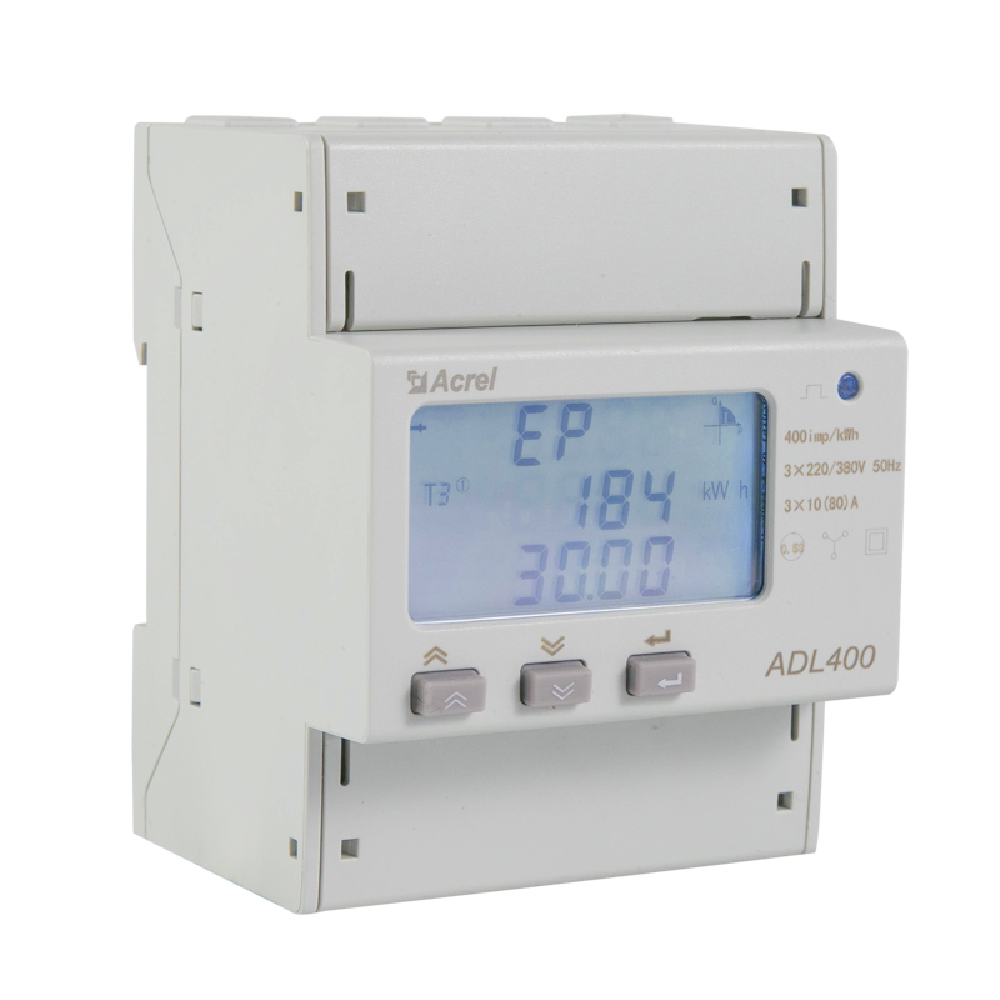

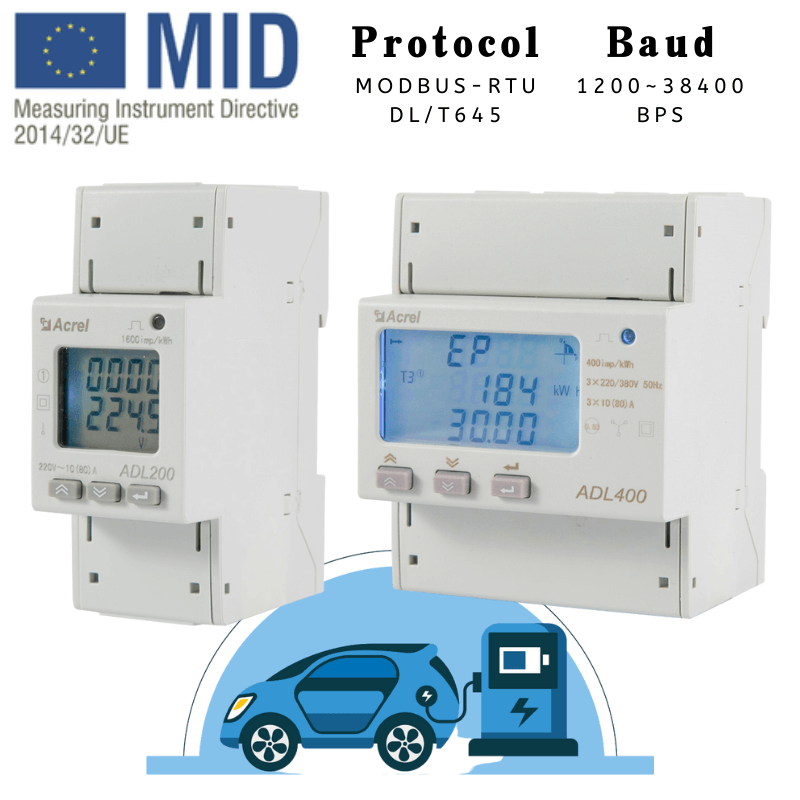

  • ADL400 3-Phase Din Rail Energy Meter
    1. Measurement: 3-phase AC kWh, kVarh, U, I, P, Q, S, PF, F and etc
    2. Accuracy: 0.5% (kWh)
    3. Frequency: 45~65Hz
    4. Rated Voltage: 3x380~456Vac L-L (direct connect); 3x100~120Vac L-L (via PTs)
    5. Rated Current: 3x10(80)A AC (direct connect); 3x1(6)A AC (via CTs)
    6. Communication: RS485 (MODBUS-RTU)
    7. Multi-rate: 4 Tariff Rates and etc
    8. Data Function: Frozen Data,Max Demand,etc
    9. Harmonic: 2~31st and total Harmonic
    10. Standard&Certificate: IEC; CE;CE-MID; EAC
    View Details inquiry

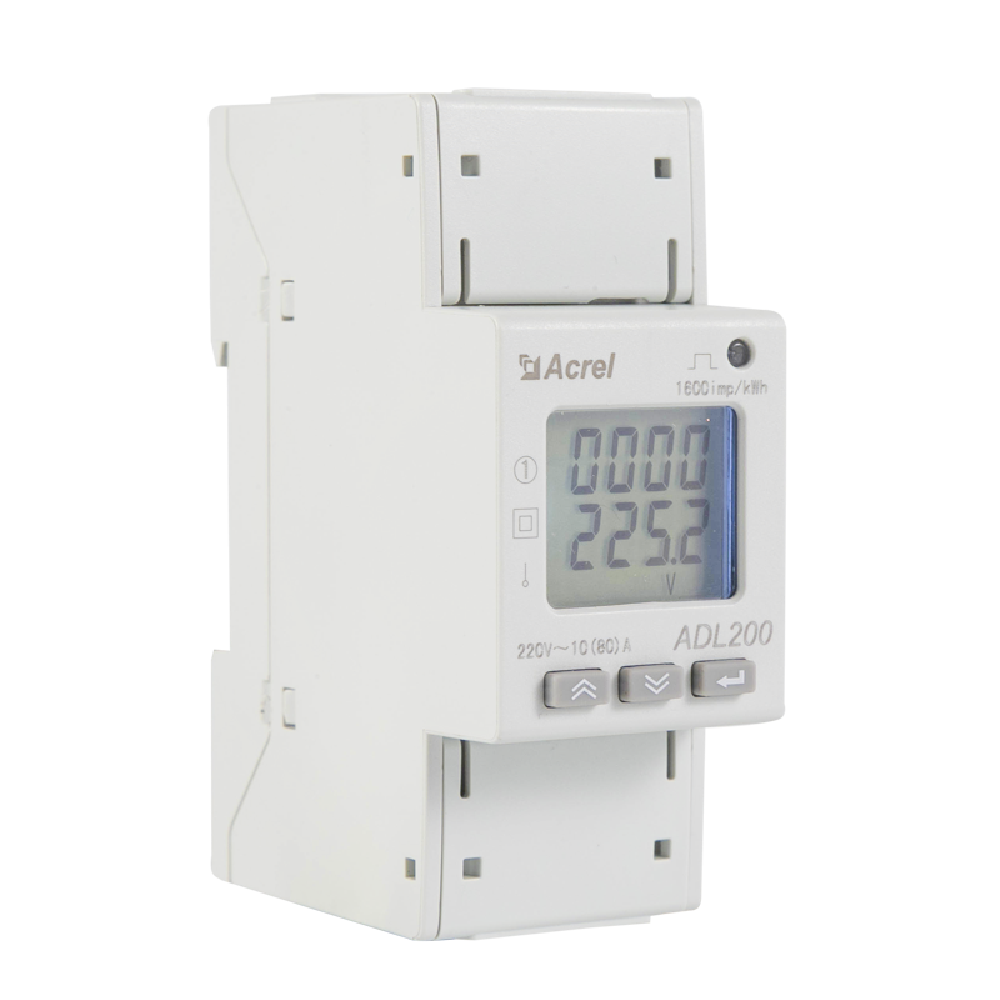

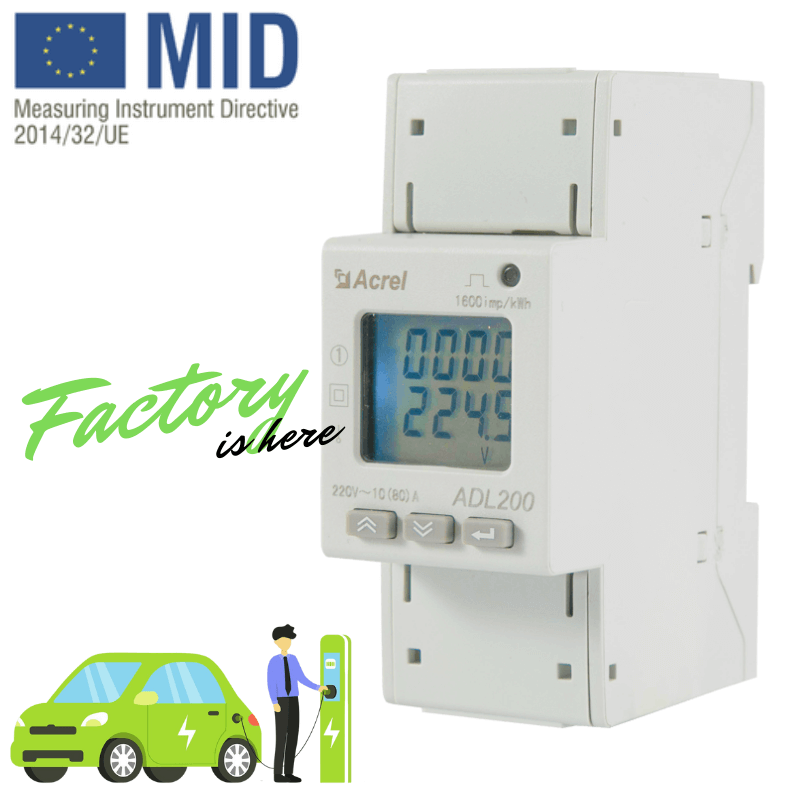

  • ADL200 1-Phase Din Rail Energy Meter
    ● Measurement: 1-phase AC kWh, Active Power, Current, Voltage and etc
    ● Accuracy: 1.0% (kWh)
    3. Frequency: 45~65Hz
    4. Rated Voltage: 220~264Vac (direct connect)
    5. Rated Current: 10(80)A AC (Direct Connect)
    6. Communication: RS485 (MODBUS-RTU)
    7. Multi-rate/tariff: 4 Tariff Rates and etc
    8. Dimension: 90*36*65mm (L*W*H)
    9. Installation: 35mm DIN Rail
    10. Standard&Certificate: IEC; CE;CE-MID;EAC
    View Details inquiry

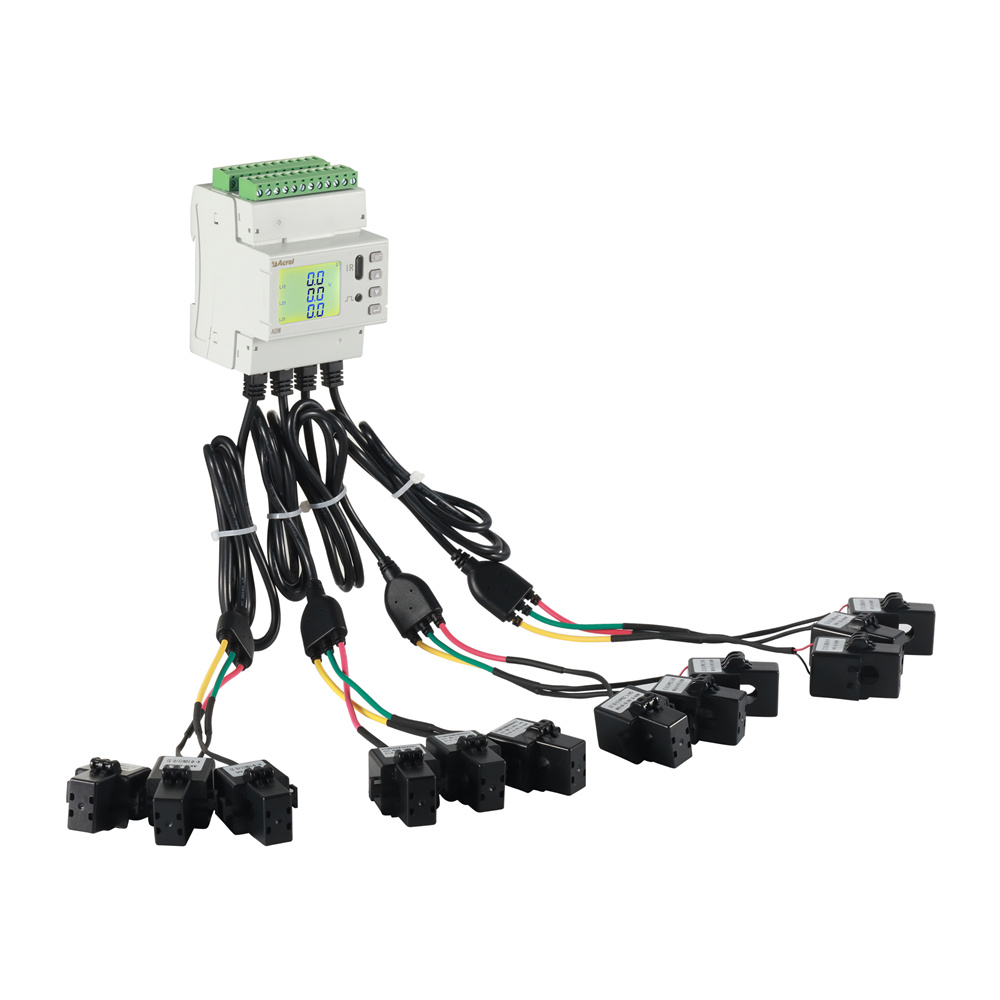

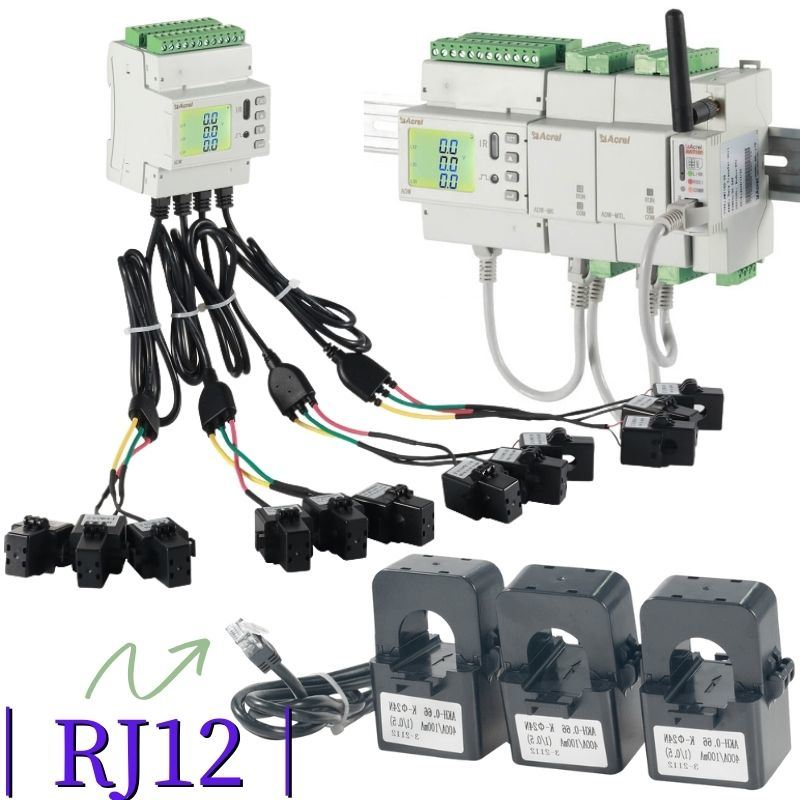

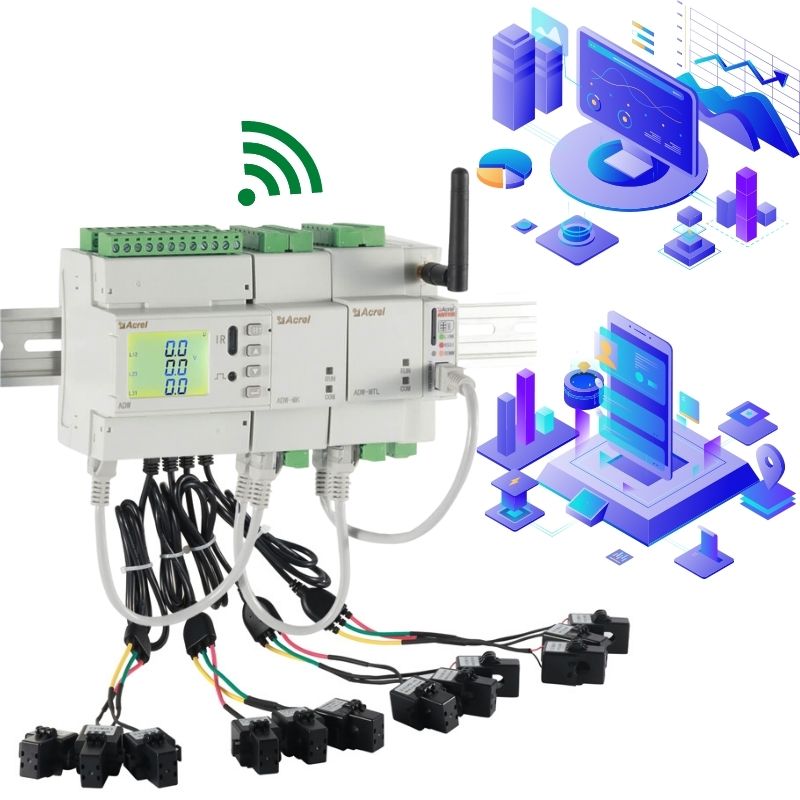

  • ADW210 3-Phase Multi-Circuit Energy Meter
    1. Measurement: Up to 4-channel 3-phase kWh, kVarh, Current, Power, 2~31stharmonic and Etc
    2. Voltage Rating: 3x220V/380V AC (3P4W)
    3. Current Rating: 5A, 100A, 400A or 600A AC (with external CTs)
    4. Frequency: 45~65Hz
    5. Communication: RS485 (MODBUS-RTU)
    6. Extra Function: Wireless Communication (4G, WiFi, LoRa and etc); Cable Temperature Measurement; DO/DI Function
    7. Display: LCD
    8. Dimension: 87.8*72*97.7mm（L*W*H) --- Main Body
    9. Wiring: 3-phase 4-wire Connection
    10. Installation: 35mm DIN Rail
    11. Standard&Certificate: CE; LVD
    View Details inquiry
  • DTSD1352-C 3-Phase Din Rail Energy Meter
    1. Measurement: 3-phase kWh (0.5S), Active Power, Reactive Power, Current, Voltage, Harmonic and etc
    2. Voltage Rating: 3x220/380V, 3x57.7/100V (3P4W); 3x380V, 3x100V (3P3W)
    3. Current Rating: 3x10(80)A; 3x1(6)A
    4. Frequency: 45~65Hz
    5. Commnunication: RS485 (MODBUS-RTU) and Infrared
    6. Multi-rate: Spike, Peak, Valley and Flat kWh
    7. Extra Function: Cable Temperature Measurement and DO/DI
    8. Display: LCD (8 digits)
    9. Dimension: 127*88*70mm (L*W*H)
    10. Wiring: 3-phase 4wire; 3-phase 3-wire
    11. Installation: 35mm DIN Rail
    12. Standard&Certificate: IEC; CE; EAC
    View Details inquiry
  • ADW210 3-Phase IoT Multi-Circuit Energy Meter For Building Factory Etc
    1. Measurement: Up to 4-channel 3-phase kWh, kVarh, Current, Power, 2~31st  Harmonic And Etc
    2. Voltage Rating: 3x220V/380V AC (3P4W)
    3. Current Rating: 5A, 100A, 400A or 600A AC (with external CTs)
    4. Frequency: 45~65Hz
    5. Communication: RS485 (MODBUS-RTU)
    6. Extra Function: Wireless Communication (4G, WiFi, LoRa and etc); Cable Temperature Measurement; DO/DI Function
    7. Display: LCD
    8. Dimension: 87.8*72*97.7mm（L*W*H) --- Main Body
    9. Wiring: 3-phase 4-wire Connection
    10. Installation: 35mm DIN Rail
    11. Standard&Certificate: CE; LVD
    View Details inquiry

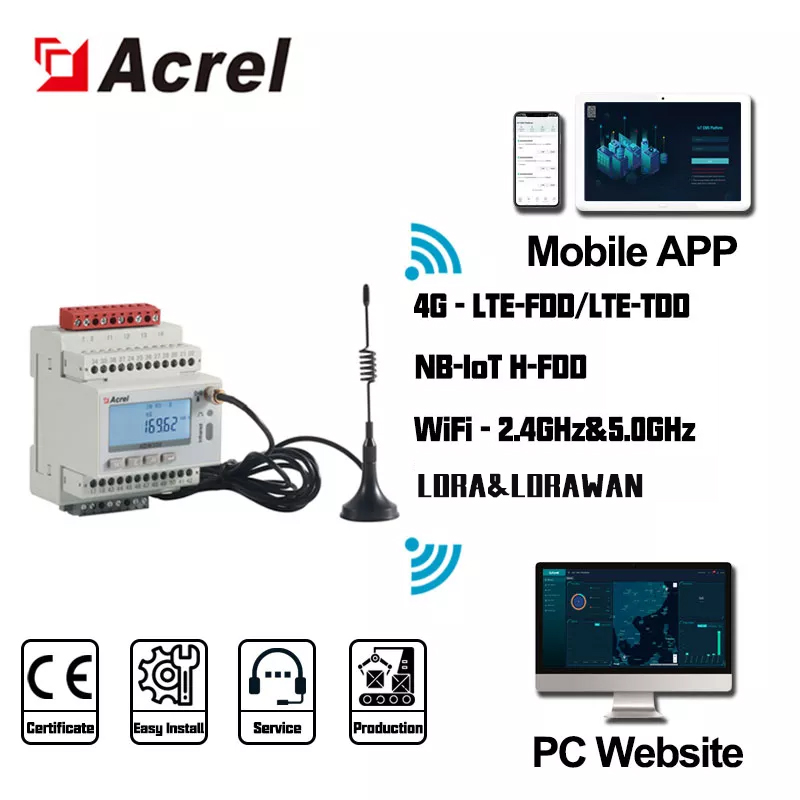

  • ADW300 3-Phase Wireless IoT Din Rail Energy Meter
    1. Communication Methods: 4G LTE, WiFi, LoRa, LoRaWAN, NB-IoT, RS485
    2. Communication Protocol: MQTT, MODBUS-RTU, MODBUS-TCP
    3. Measurement: 3-phase Active Power, Reactive Power, Current, Voltage, Harmonic and etc.
    4. Application Scenario: Building, Factory, Smart Grids, DB Room and etc
    5.  Rated Voltage: Up to 3x660~792Vac L-L
    6. Rated Current: 3x1(6)A AC (via CTs) 333mV(Via CTs)3*100A(Via CTs)

    7. HMI Programming: Setting of CT/PT Ratio, Phase Wiring, Communication and etc
    8. Standard&Certificate: CE; IEC; LVD
    View Details inquiry

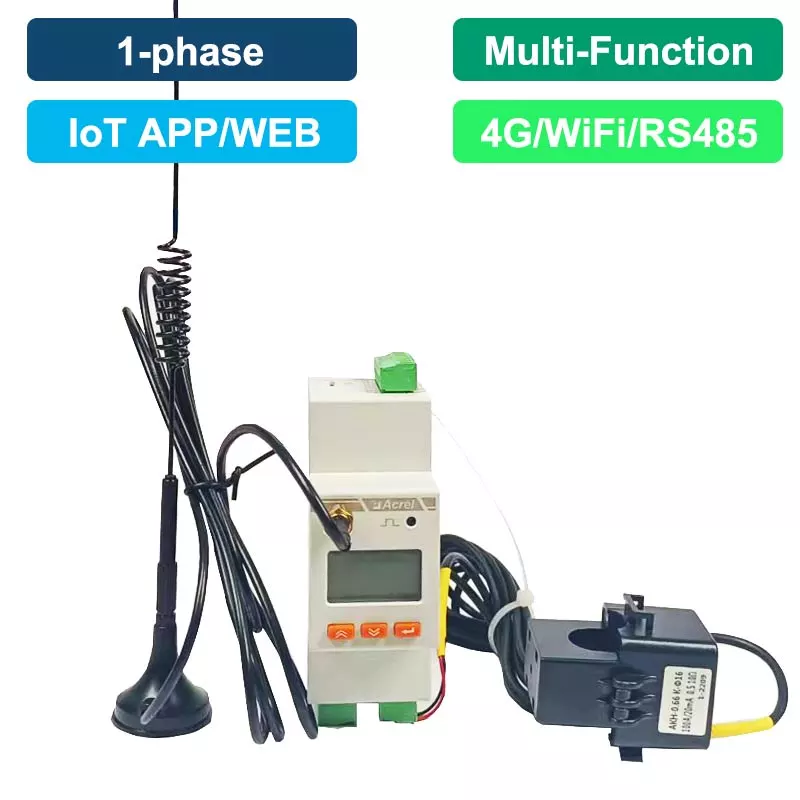

  • ADW310 IoT 1-phase Wireless Smart Energy Meter
    ● Wireless Comms.:4G, WiFi (MQTT, MODBUS-TCP)
    ●Wired Comms.:RS485 (MODBUS-RTU)
    ●Rated Voltage:220~264Vac L-N
    ●Rated Current:20(100)A AC (via paired CT)
    ●Measurement:1-phase Active&Reactive Energy, Active&Reactive Power, Current, Voltage, Frequncy, Power Factor, Apparent Power
    ●I/O Function:1-way DI & 1-way DO
    ●Temperature:2-way Cable Temperature Measurement
    ●Pulse Output:Active Pulse Output
    View Details inquiry

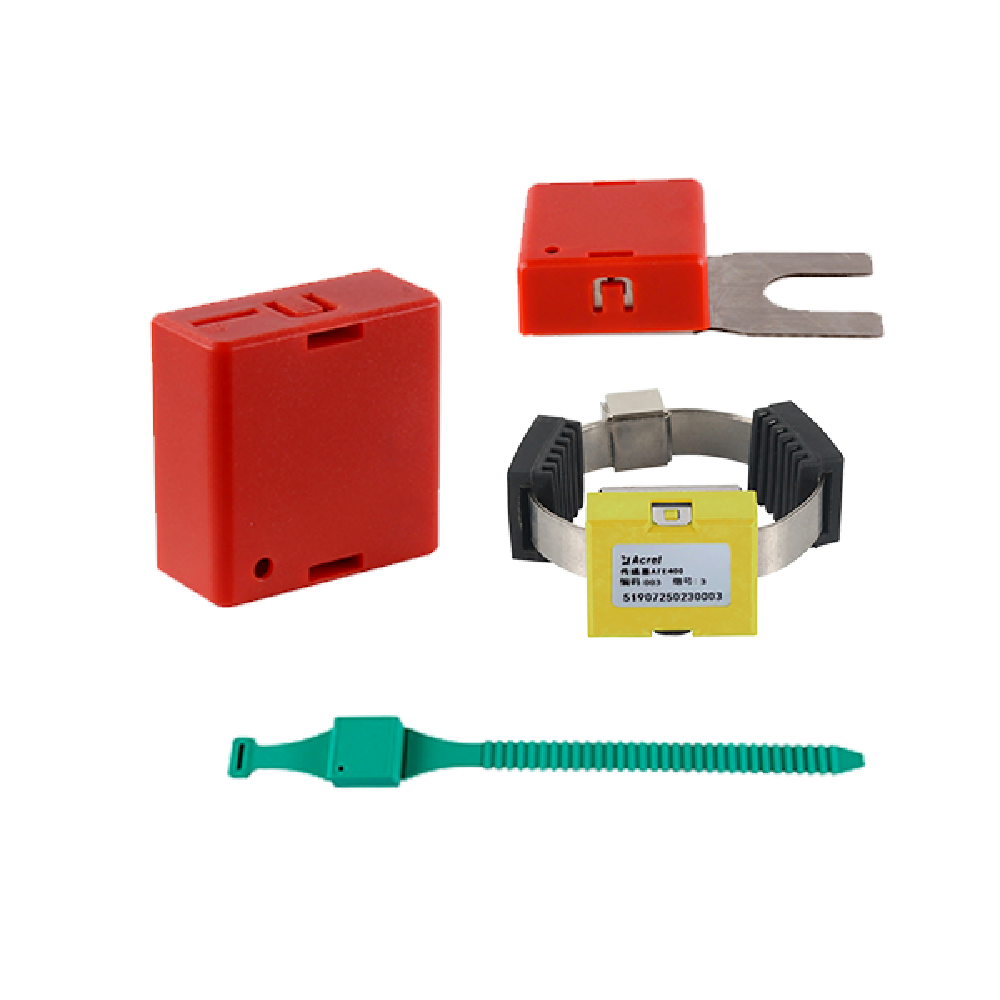

  • ATE 433Mhz Wireless Tempeerature Sensor
    1. Range Of Measurement: -50℃~+125℃， 150M distance in open Space
    2. Communication: GFSK Wireless Communication
    3. Application: Switchgear, Busbar, Bus Duct, Electric Contact, Cable Joint, Rain Main Unit，Device Surface  And Etc
    4. Installation: Bolted, Magnetic, Belt, Alloy Sheet Fixed
    5. Protection Level: IP68 (Optional)
    6.  Power Supply: Battery Or CT Sensing Power
    7. Standard&Certificate: CE
    View Details inquiry
  • AHE Wireless Temperature And Humidity Sensor

    1. Temperature range: -45~85℃  150M Distance In Open Space

    2. Humidity range: 0-100%RH

    3. 25s Collection Frequency (can be changed)

    4. 5 min Transmit Frequency (can be changed)


    View Details inquiry
  • ADW210 3-Phase IoT Multi-Circuit Energy Meter for Buildings, factories Etc.
    1. Measurement: Up To 4-Channel 3-Phase KWh, KVarh, Current, Power, 2~31st Harmonic And Etc
    2. Voltage Rating: 3x220V/380V AC (3P4W)
    3. Current Rating: 5A, 100A, 400A Or 600A AC (With External CTs)
    4. Frequency: 45~65Hz
    5. Communication: RS485 (MODBUS-RTU)
    6. Extra Function: Wireless Communication (4G, WiFi, LoRa And Etc); Cable Temperature Measurement; DO/DI Function
    7. Display: LCD
    8. Dimension: 87.8*72*97.7mm（L*W*H) --- Main Body
    9. Wiring: 3-Phase 4-Wire Connection
    10. Installation: 35mm DIN Rail
    11. Standard&Certificate: CE; LVD
    View Details inquiry

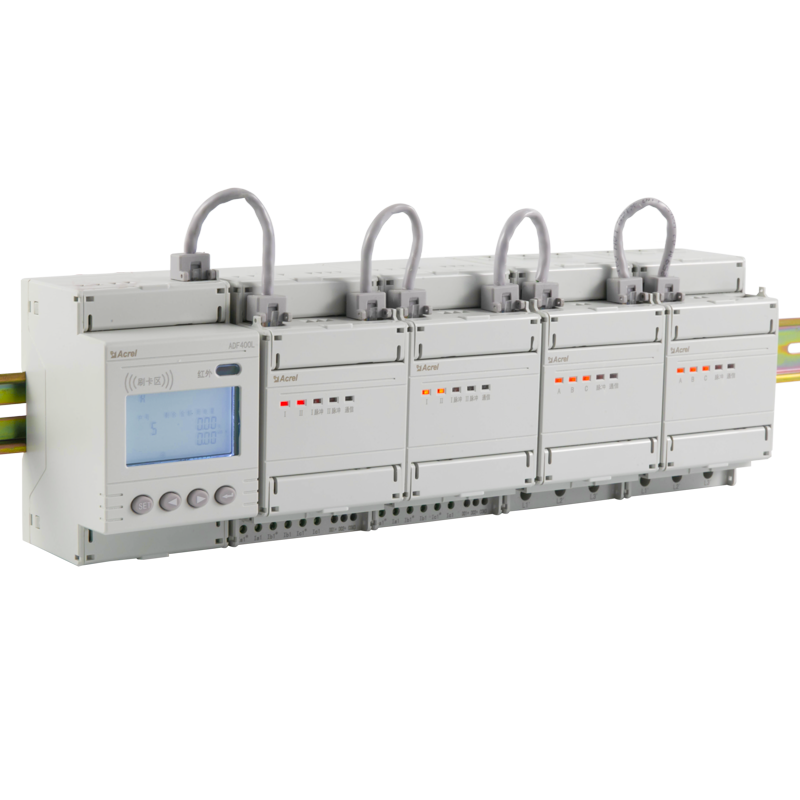

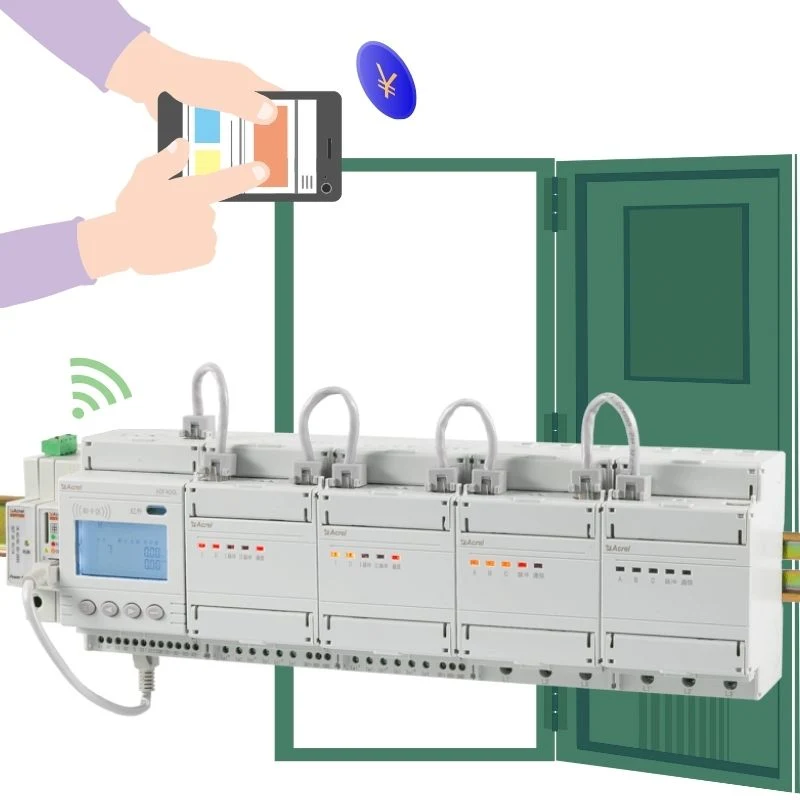

  • ADF400L 1-phase&3-phase Muilti-circuit Energy Meter For Buildings , Factories etc
    1.  Application: Prepaid&Postpaid
    2. Monitoring:  Up To 36 Circuits 1-Phase Or 12 Circuits 3-Phase Or Mixed
    3. Measurement: 1-phase&3-phase kWh (Class 0.5S), kVarh, Active Power, Reactive Power, Current, Voltage and etc
    4. Rated Voltage: 3x220/380V (50Hz)
    5. Rated Current: 80A AC (direct connection); 3x1(6)A AC (via CTs)
    6. Communication (Main Body): RS485 (MODBUS-RTU); Ethernet; Infrared
    7. Communication (Expanded): 4G; WiFi; LoRa
    8. Remote Control: DO&DI
    9. Installtion: 35mm DIN Rail
    10. Power Supply: 3*220/380V or 220V AC
    11. Standard&Certificate: CE
    View Details inquiry

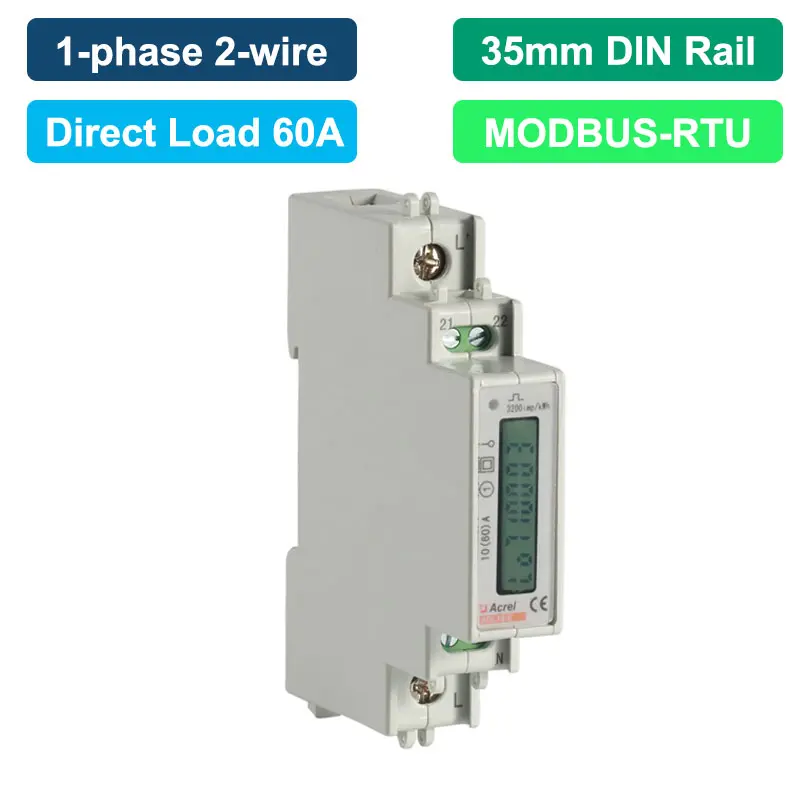

  • ADL10-E Single Phase DIN Rail Energy Meter
    1. Reference Voltage: 220V
    2. Input Current: 10（60）A
    3. Small Compact Size
    4. Diverse Electricity Parameters Measurement
    5. DIN Rail Installation
    6. LCD Display
    7. RS485 (MODBUS-RTU)
    8. IEC62053-21:2003; IEC62053-22:2003; CE; EAC
    View Details inquiry
  • ADL200 1-Phase Din Rail Energy Meter
    1. Measurement: 1-Phase AC KWh, Active Power, Current, Voltage And Etc
    2. Accuracy: 1.0% (KWh)
    3. Frequency: 45~65Hz
    4. Rated Voltage: 220~264Vac (Direct Connect)
    5. Rated Current: 10(80)A AC (Direct Connect)
    6. Communication: RS485 (MODBUS-RTU)
    7. Multi-Rate/Tariff: 4 Tariff Rates And Etc
    8. Dimension: 90*36*65mm (L*W*H)
    9. Installation: 35mm DIN Rail
    10. Standard&Certificate: IEC; CE;CE-MID;EAC
    View Details inquiry
  • ADL400 3-Phase Din Rail Energy Meter
    1. Measurement: 3-Phase AC KWh, KVarh, U, I, P, Q, S, PF, F And Etc
    2. Accuracy: 0.5% (KWh)
    3. Frequency: 45~65Hz
    4. Rated Voltage: 3x380~456Vac L-L (Direct Connect); 3x100~120Vac L-L (Via PTs)
    5. Rated Current: 3x10(80)A AC (Direct Connect); 3x1(6)A AC (Via CTs)
    6. Communication: RS485 (MODBUS-RTU)
    7. Multi-Rate: 4 Tariff Rates And Etc
    8. Data Function: Frozen Data,Max Demand,Etc
                                                         9. Harmonic: 2~31s t And Total Harmonic
    10. Standard&Certificate: IEC; CE;CE-MID; EAC

    View Details inquiry
  • DTSD1352-C 3-Phase Din Rail Energy Meter
    1. Measurement: 3-phase kWh (0.5S), Active Power, Reactive Power, Current, Voltage, Harmonic and etc
    2. Voltage Rating: 3x220/380V, 3x57.7/100V (3P4W); 3x380V, 3x100V (3P3W)
    3. Current Rating: 3x10(80)A; 3x1(6)A
    4. Frequency: 45~65Hz
    5. Commnunication: RS485 (MODBUS-RTU) and Infrared
    6. Multi-rate: Spike, Peak, Valley and Flat kWh
    7. Extra Function: Cable Temperature Measurement and DO/DI
    8. Display: LCD (8 digits)
    9. Dimension: 127*88*70mm (L*W*H)
    10. Wiring: 3-phase 4wire; 3-phase 3-wire
    11. Installation: 35mm DIN Rail
    12. Standard&Certificate: IEC; CE; EAC
    View Details inquiry
  • ADW300 3-Phase Wireless IoT Din Rail Energy Meter
    1. Communication Methods: 4G LTE, WiFi, LoRa, LoRaWAN, NB-IoT, RS485
    2. Communication Protocol: MQTT, MODBUS-RTU, MODBUS-TCP
    3. Measurement: 3-phase Active Power, Reactive Power, Current, Voltage, Harmonic and etc.
    4. Application Scenario: Building, Factory, Smart Grids, DB Room and etc
    5.  Rated Voltage: Up to 3x660~792Vac L-L
    6. Rated Current: 3x1(6)A AC (via CTs) 333mV(Via CTs)3*100A(Via CTs)

    7. HMI Programming: Setting of CT/PT Ratio, Phase Wiring, Communication and etc
    8. Standard&Certificate: CE; IEC; LVD
    View Details inquiry

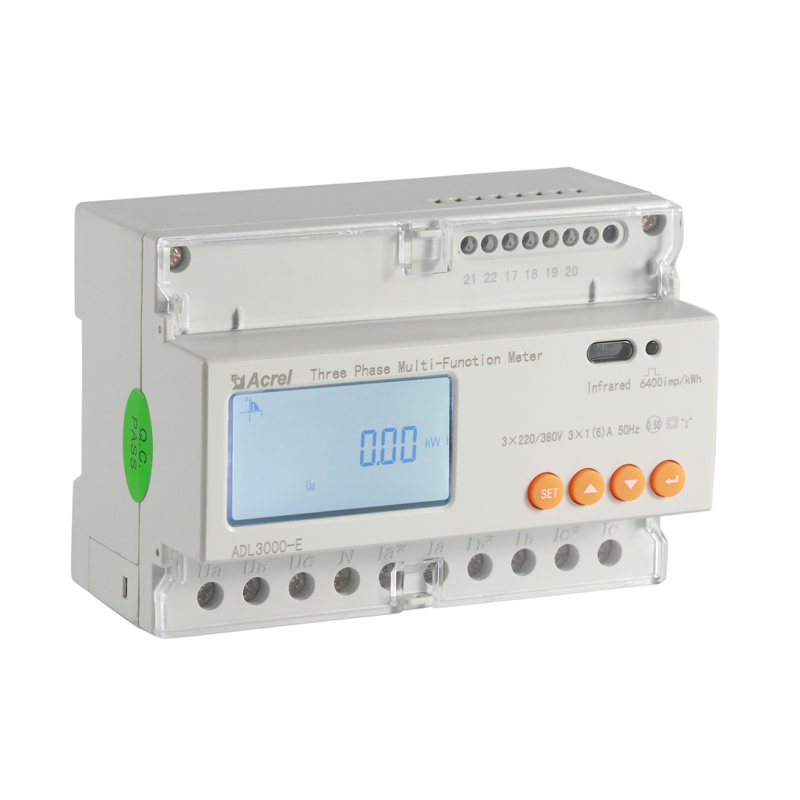

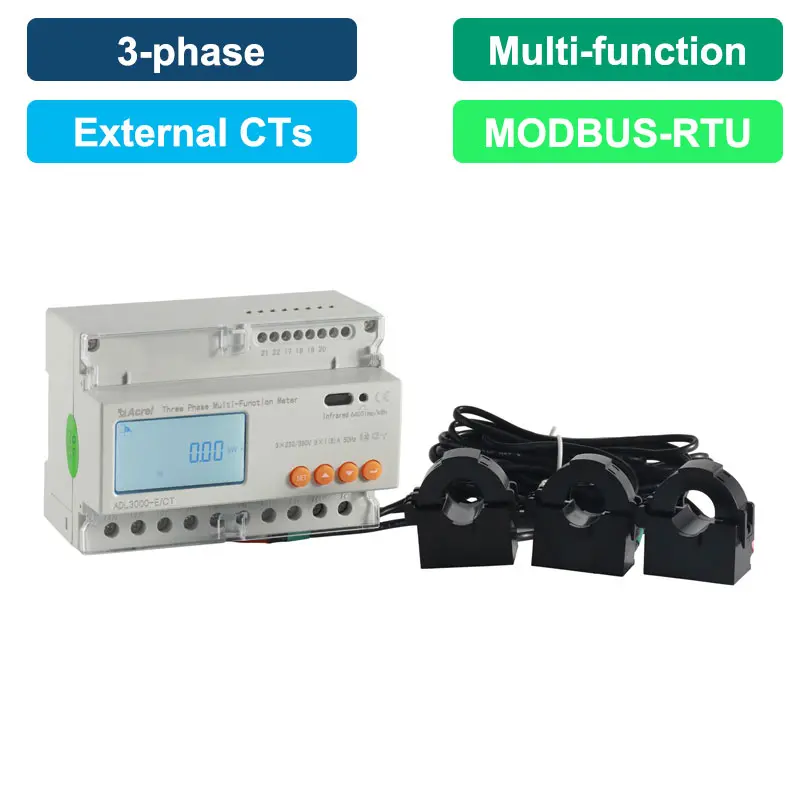

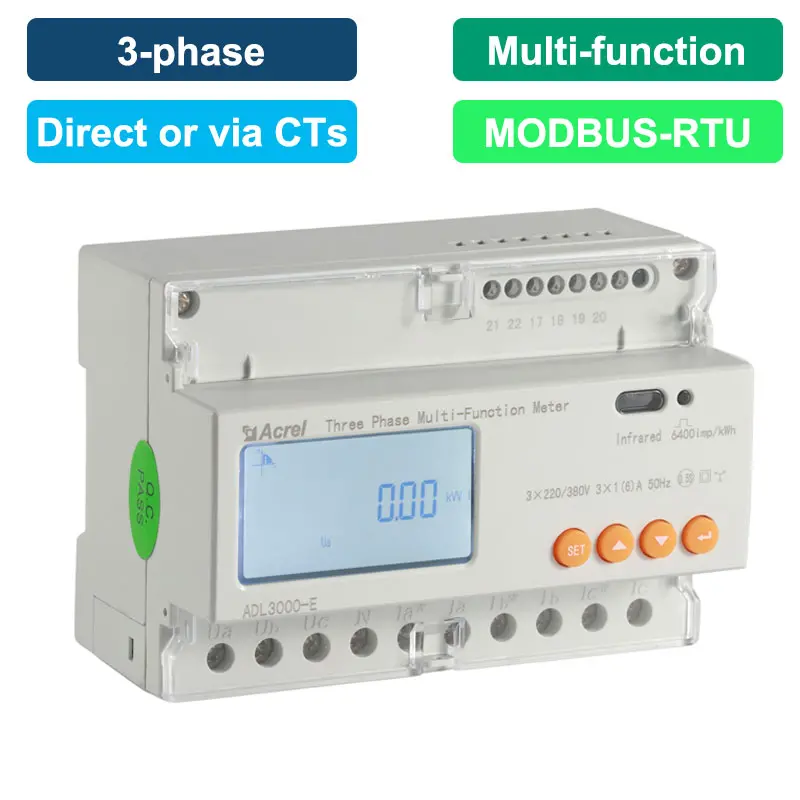

  • ADL3000-E/CT Three-phase Multi-function DIN Rail Energy Meter (with External CTs)
    1. Measurement: 3-phase kWh (0.5S), Active Power, Reactive Power, Current, Voltage, Harmonic and etc
    2. Voltage Rating: 3x220/380V, 3x57.7/100V (3P4W); 3x380V, 3x100V (3P3W)
    3. Current Rating: 3x10(100)A; 3x1(6)A
    4. Frequency: 45~65Hz
    5. Commnunication: RS485 (MODBUS-RTU) and Infrared
    6. Multi-rate: Spike, Peak, Valley and Flat kWh
    7. Extra Function: Cable Temperature Measurement and DO/DI
    8. Display: LCD (8 digits)
    9. Dimension: 127*88*70mm (L*W*H)
    10. Wiring: 3-phase 4wire; 3-phase 3-wire
    11. Installation: 35mm DIN Rail
    12. Standard&Certificate: IEC; CE; EAC
    View Details inquiry
  • AMC 3-Phase Cheap Panel Energy Meter
    1. Measurement: 3-Phase AC KWh, KVarh, I, U, KW, KVar, Hz, Cosφ And Etc
    2. Accuracy: 1% (KWh); 0.5% (Active Power)
    3. Rated Voltage:690V 400V AC L-L (Direct Connect); 100V AC L-L (Via PTs)
    4. Rated Current: 5A AC Or 1A AC (Via CTs)
    5. Power Supply: 85~265V AC/DC; 24V Or 48V DC
    6. Communication: RS485 (MODBUS-RTU)
    7. SOE Funciton: Event&Demand&Extremum Record
    8. Harmonic Measurement: 2~31st  And Total Harmonic
    9. Analog Output: 4~20mA DC Or 1~5V DC
    10. DI/DO Function: 2/4-Channel DI&2-Channel DO
    11. Standard&Certificate: CE Certificates
    View Details inquiry
  • APM 3-Phase Multifunciton Energy Meter
    1. Measurement: 3-Phase KWh, KVarh, KW, I, U, Hz, Cosφ, Current&Voltage Unbalance, 2~63rd
     Harmonic, Real-Time&Max Demand, Zero-Sequence Current, 4-Quadrant Energy And Etc
    2. Current Rating: -/5A AC; -/1A AC (According To CTs)
    3. Voltage Rating: 100V, 110V, 400V, 690V AC
    4. Frequency: 45~65Hz
    5. Accuracy:High Accuracy Up To 0.2S (Optional)
    6. Communication (Main Body): RS485 (MODBUS-RTU)
    7. Communication (Expanded): PROFIBUS-DP; Ethernet; Secondary RS485
    8. Extra Function: 8DI/2DO; 8AI/4AO; SOE (With Standard 8GB SD Card,data logger); Multi-Rate
    9. Display: LCD Display
    10. Dimension: 96*96*90mm (L*W*H)
    11. Installation: Panel Embedded (Cut-Out --92*92mm)
    12. Power Supply: 85~265V AC/DC; 115~415V AC/DC
    13. Standard&Certificate: CE
    View Details inquiry
  • PZ 1-Phase &3-Phase Volt Meter/Ammeter
    1. Accuracy: 0.5%
    2. Communication: RS485 (MODBUS-RTU)
    3. DI/DO Function: 2/4-Channel DI&2-Channel DO
    4. Standard&Certificate: CE Certificates
    View Details inquiry
  • PZ 1-Phase&3-Phase Panel Energy Meter
    1. Accuracy: 0.5%
    2. Communication: RS485 (MODBUS-RTU)
    3. DI/DO Function: 2/4-Channel DI&2-Channel DO
    4. Standard&Certificate: CE Certificates
    View Details inquiry

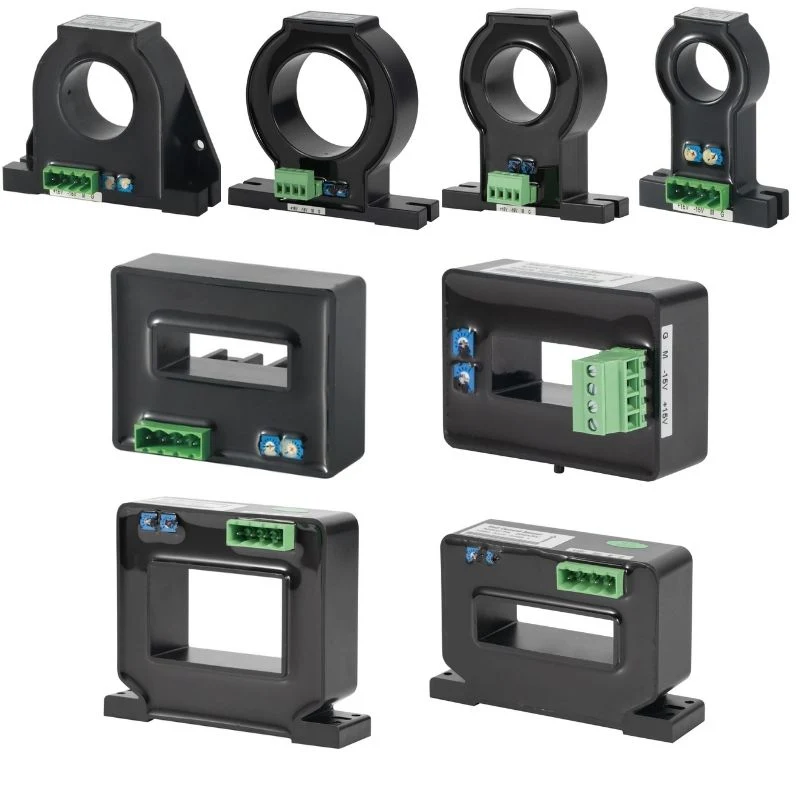

  • AHKC Hall Effect Current Sensor/DC current Sensor

    1. Accuracy: class 1 / 0.5

    2. Low cost, split type, easy install

    3.Input: AC/DC 0-20000A
    4. Output：4V/5V/0-20mA /4-20mA

    View Details inquiry

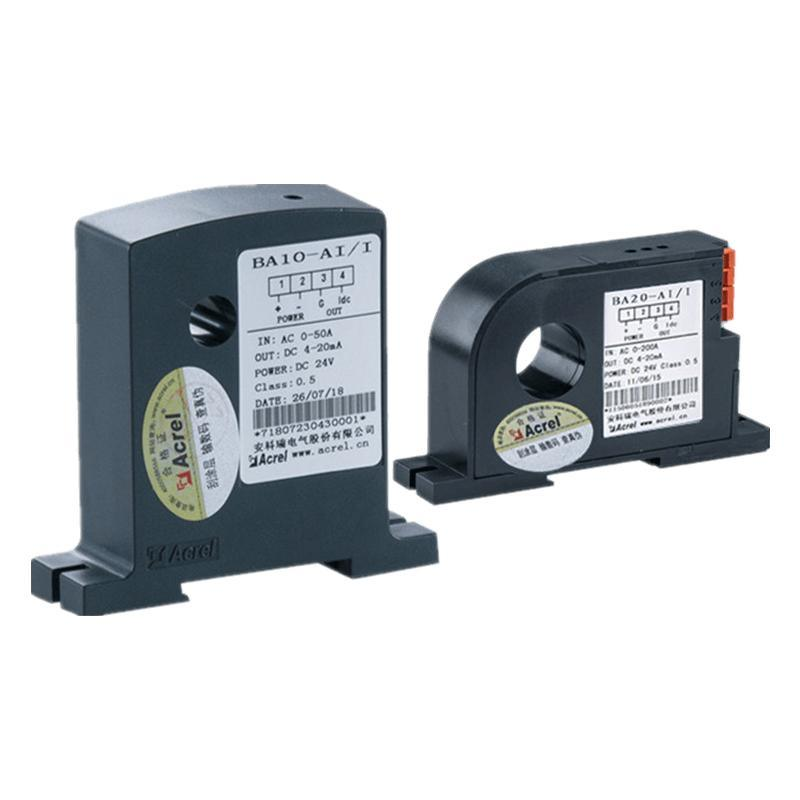

  • BA Current Transducer

    1. Input: AC0-(10~600)A Or 0-1A Leakage Current

    2. Analog Output: DC 0-5V, 1-5V, 0-10V; 0-20mA,4-20mA

    3. Power Supply: DC12V/DC24V

    View Details inquiry

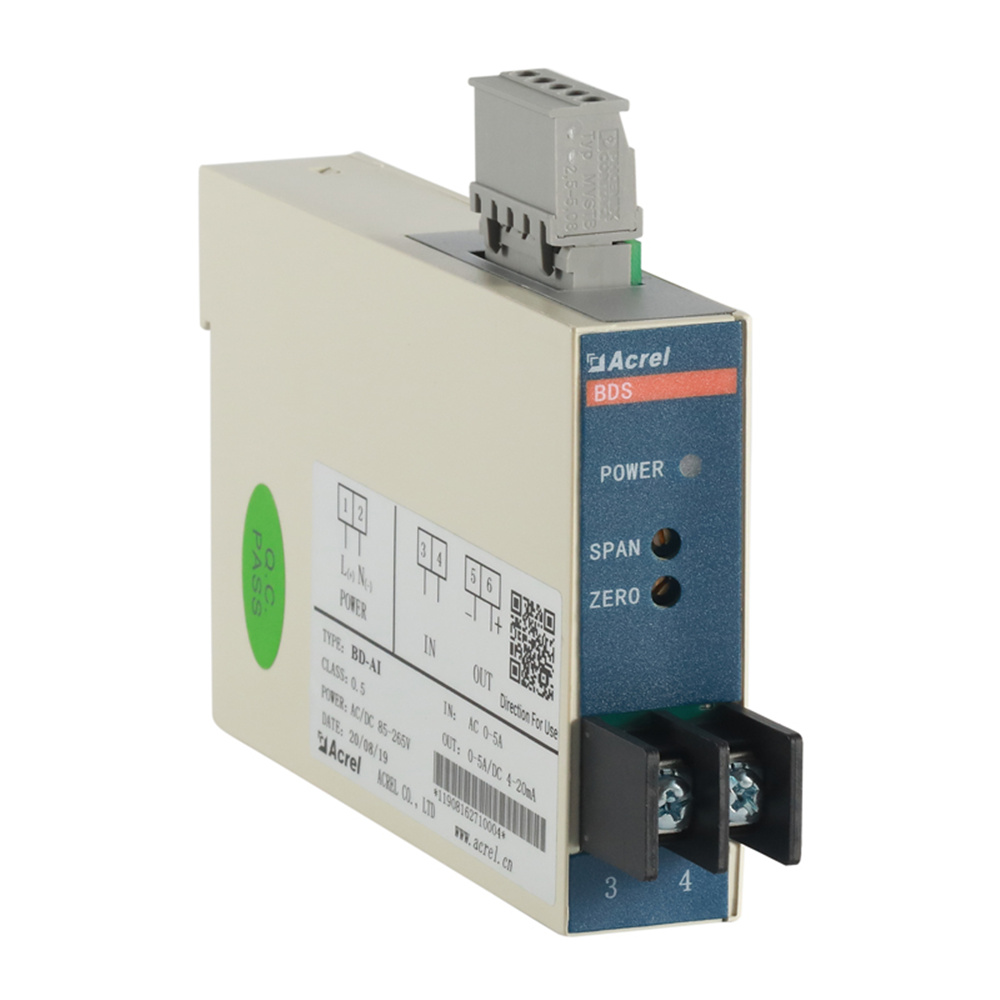

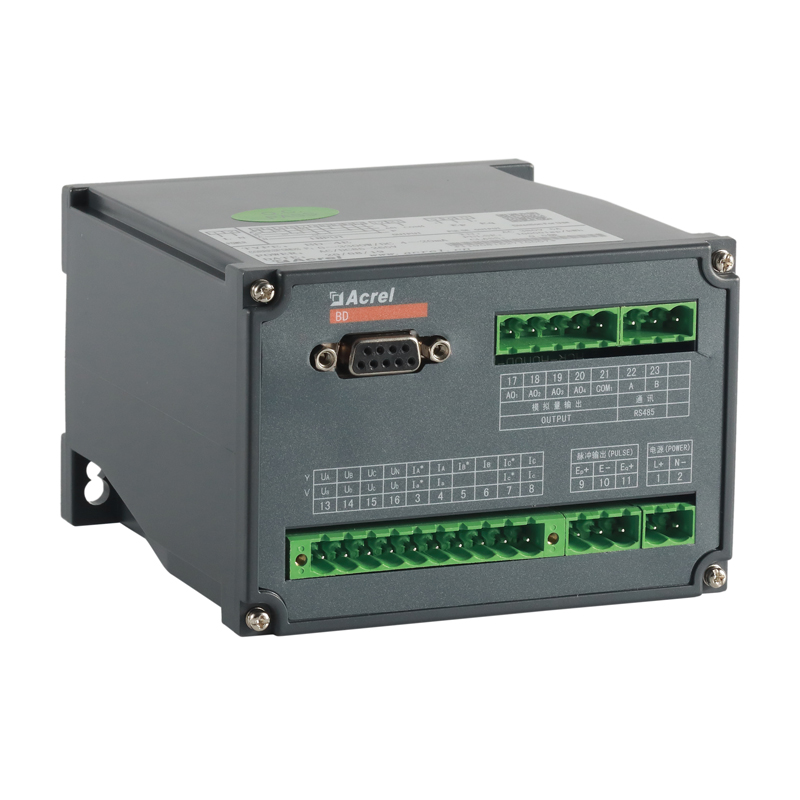

  • BD single /Three Phase Current &Voltage &Power Transducer

    1. Accuracy: Class 0.5

    2. Input: 4~20mA/0~20mA DC Or 0~500V AC or 0-5A AC

    3.  Output: 4~20mA/0~20mA DC Or 0~5V/0~10V DC
     4. Power Supply: 85~265V AC Or 100~350V DC Or 24V/48V DC

    View Details inquiry

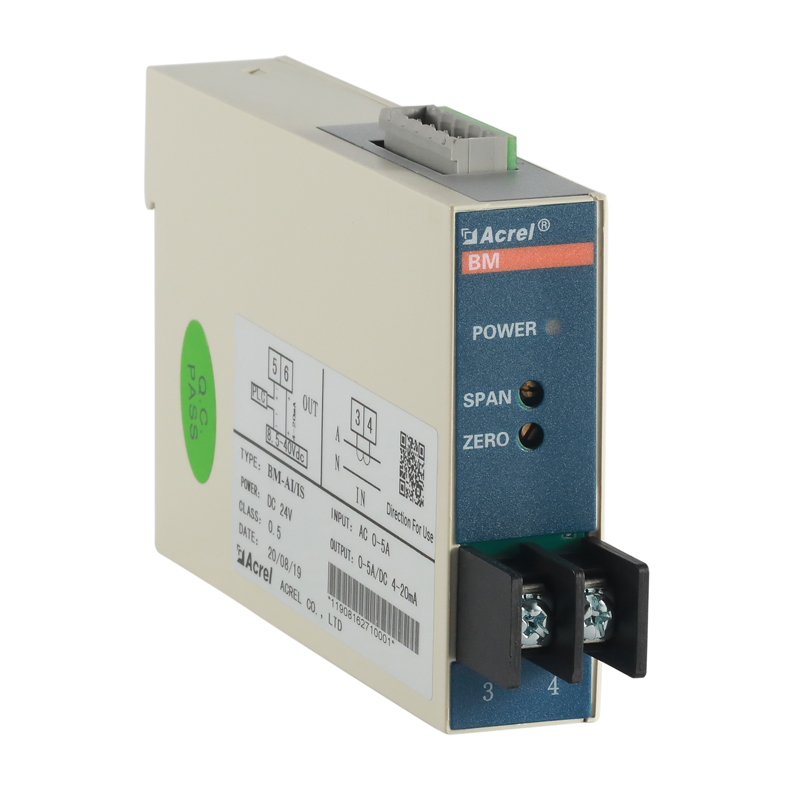

  • BM Analog Signal Isolator/ Converter

    1. Accuracy: Class 0.5

    2. Input: DC 0-5V, 0-10V; 0-20mA,4-20mA Or AC 0~1(5)A, 0~500V or PT100 or Fixed resistor Or thermocouple

    3. Analog Output: DC 0-5V, 1-5V, 0-10V; 0-20mA,4-20mA

    4. Power supply: DC12V/DC24V/AC 220V

    View Details inquiry

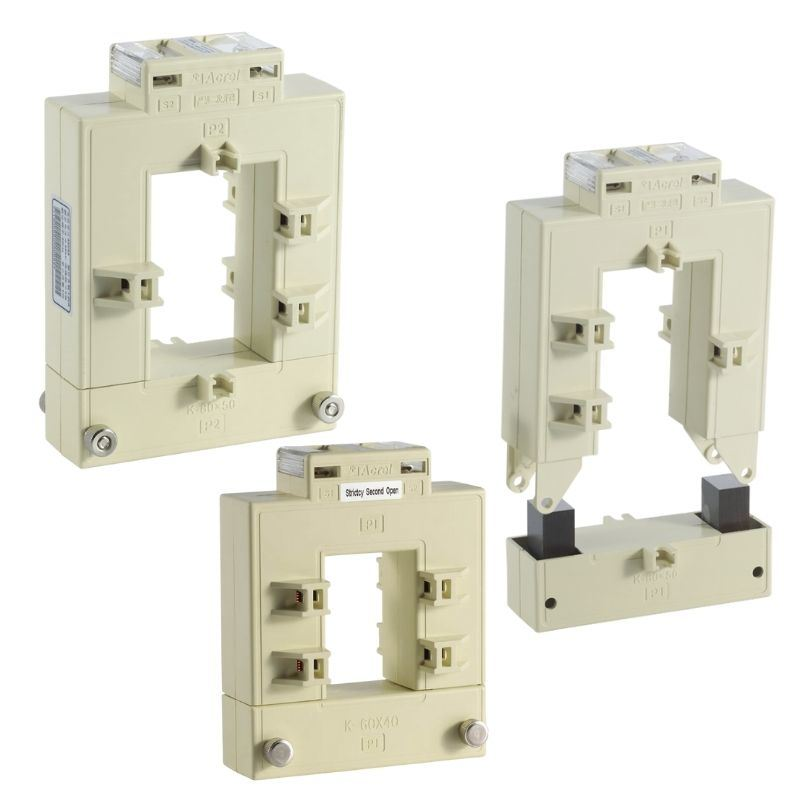

  • AKH-0.66-K-φ Split Core Current Transformer

    1. Split core current transformer

    2. Accuracy: class 0.5

    3. Suitable for electricity renovation project

    4. Input: 5-1000A  Output: 5/10/20/40/75100 mA or 5/1A

    View Details inquiry

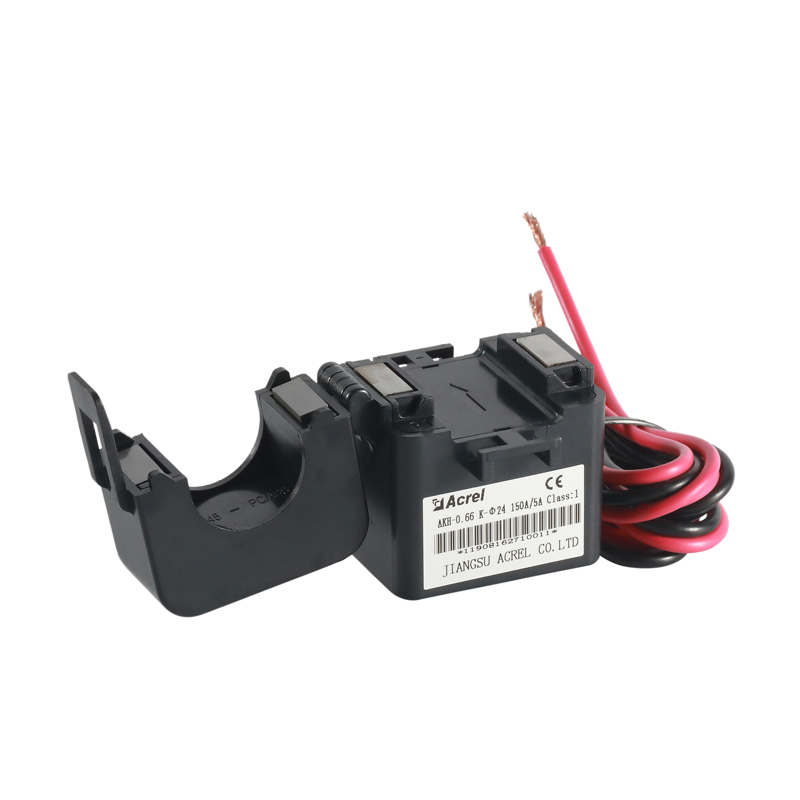

  • AKH-0.66-K Split Core Current Transformer

    1. Split core current transformer

    2. Easy to install without power off

    3. Suitable for electricity renovation project

    4. Input: 20-5000A  Output: 5/1A

    View Details inquiry
  • AGF-MxxT DC Multi-Circuits Monitoring Device for PV Combiner Box
    1.Measurement: DC Current of up to 24 Circuits (with Hall Sensors); Voltage of Busbar
    2.Communication: RS485 (MODBUS-RTU)
    3.Application: Paired with PV Combiner Box for DC Multi-circuits Monitoring
    4. Temperature Monitoring: Inner Temperature of PV Combiner Box
    5. DI Function: 3-channel Digital Input
    6.Display: LCD Display
    7. Installation: 35mm DIN Rail (Main Body); Perforation (Cable)
    8.Power Supply: 1000V DC or 1500V DC
    9.Standard&Certificate: CE;LVD;EMC
    View Details inquiry

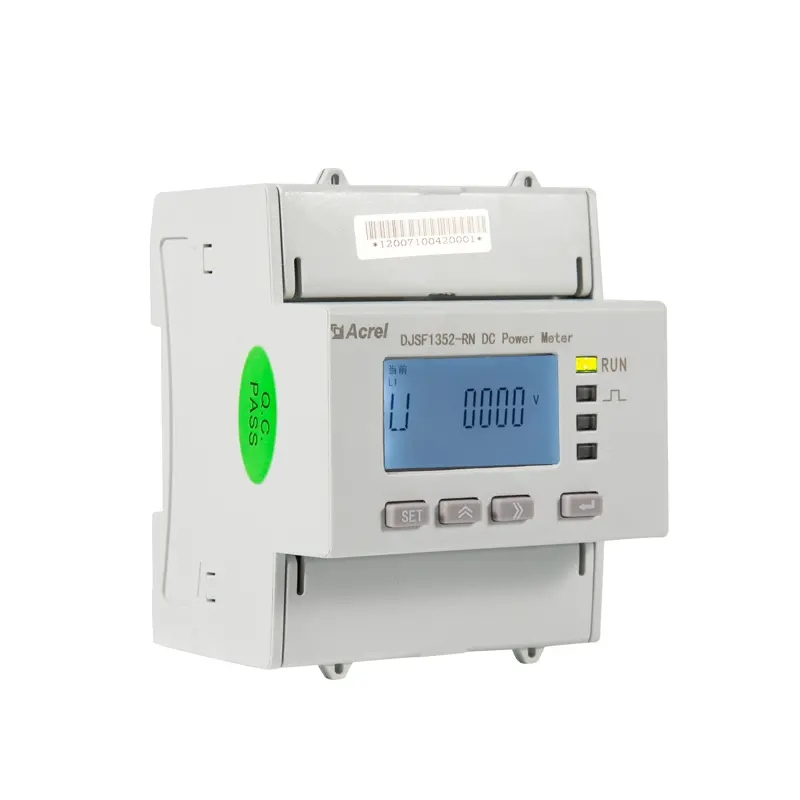

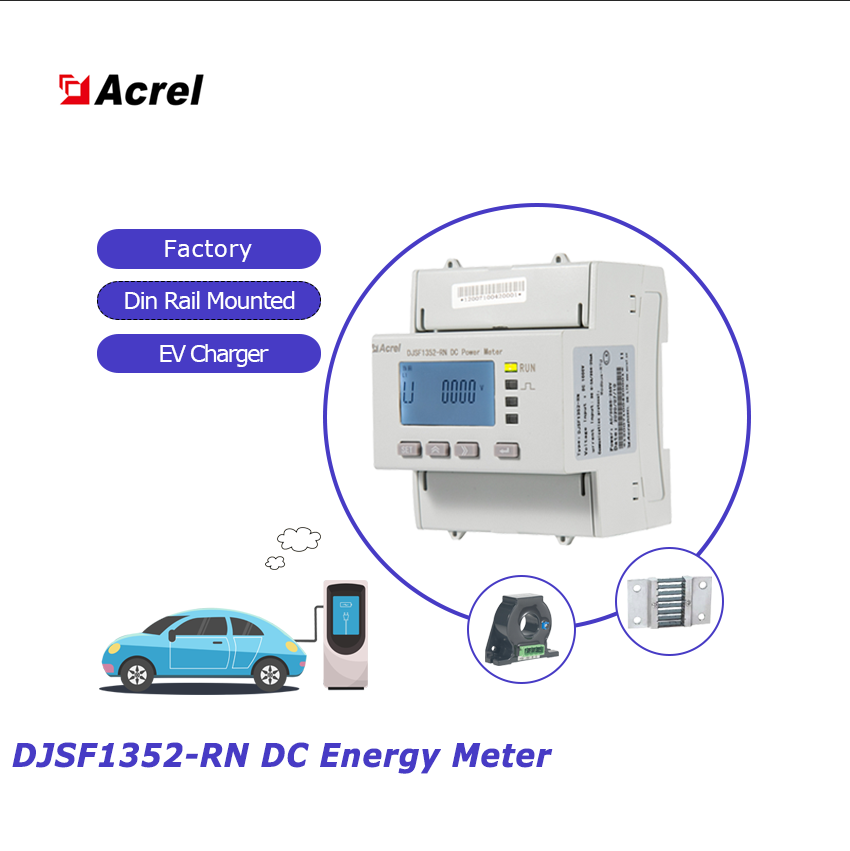

  •  DJSF1352-RN Dual DC Din Rail Enegry Meter for DC eV Charger / Solar PV/Battery Monitoring
    1. Measurement: kWh, kVarh, Power, Current, Voltage and etc
    2. Current Rating: -/75mV (with Shunt); -/4~20mA (with Hall Sensor)
    3. Voltage Rating: 0~1000V DC
    4. Application: DC Battery; Charging Pile; Solar PV and etc
    5. Communication: RS485 (MODBUS-RTU)
    6. Extra Function: Dual DC Circuits Monitoring; Secondary RS485 (MODBUS-RTU); Built-in Bipolar Power Source (for Hall Sensors); DO/DI Function
    7. Display: LCD Display
    8. Dimension: 72*71*87.8mm (L*W*H)
    9. Installation: 35mm DIN Rail
    10. Power Supply: 85~265V AC/DC; 24V(±10%) DC; 48V(±10%) DC
    11. Standard&Certificate: CE
    View Details inquiry

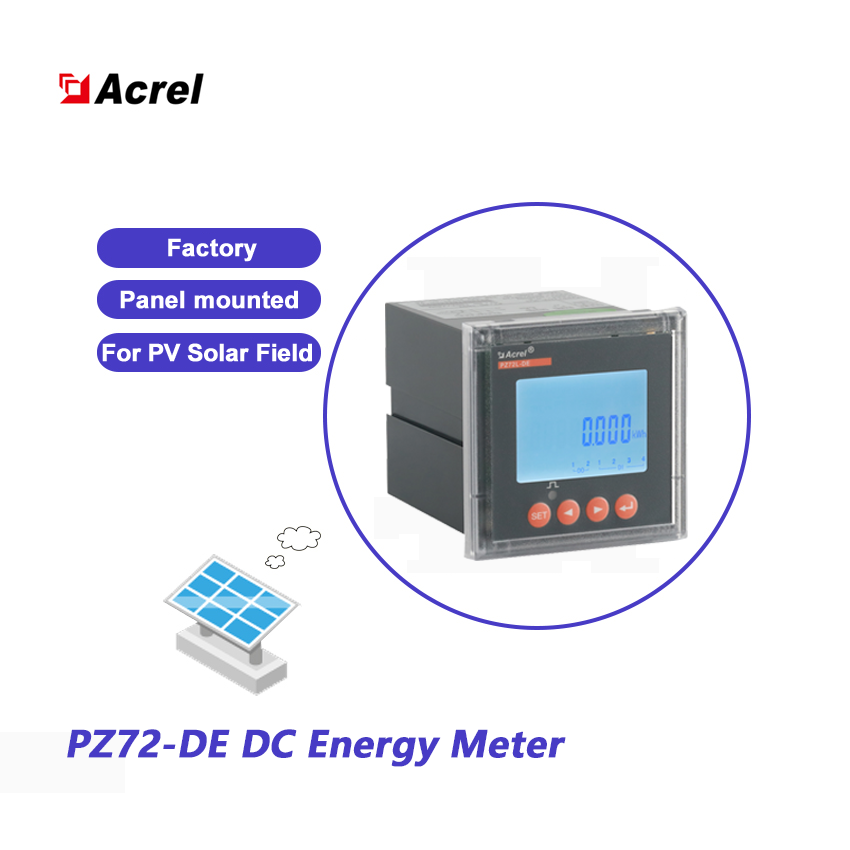

  • PZ72 DC Panel Energy Meter/Volt Meter/Ammeter For Solar PV/Battery Monitoring
    1. Measurement: 1-circuit DC kWh, kVarh, U, I, P and etc
    2. Accuracy: 0.5%
    3. Rated Voltage: 1000V DC
    4. Rated Current: 10A DC (direct connect); 0/4~20mA DC (via Hall Sensor); 75mV (via Shunts)
    5. Power Supply: 85~265V AC/DC; 20~60V DC
    6. Communication: RS485 (MODBUS-RTU)
    7. ±12V Power Ouput: Paired with Hall Sensor
    8. DI/DO Function: 2/4-channel DI&2-channel DO
    9. Multi-rate/tariff: 4 Tariff Rates and etc
    10. Standard&Certificate: CE Certificates
    View Details inquiry
  • AGF-MxxT DC Multi-Circuits Monitoring Device for PV Combiner Box
    1.Measurement: DC Current of up to 24 Circuits (with Hall Sensors); Voltage of Busbar
    2.Communication: RS485 (MODBUS-RTU)
    3.Application: Paired with PV Combiner Box for DC Multi-circuits Monitoring
    4. Temperature Monitoring: Inner Temperature of PV Combiner Box
    5. DI Function: 3-channel Digital Input
    6.Display: LCD Display
    7. Installation: 35mm DIN Rail (Main Body); Perforation (Cable)
    8.Power Supply: 1000V DC or 1500V DC
    9.Standard&Certificate: CE;LVD;EMC
    View Details inquiry
  • DTSD1352-C 3-Phase Din Rail Energy Meter
    1. Measurement: 3-Phase KWh (0.5S), Active Power, Reactive Power, Current, Voltage, Harmonic And Etc
    2. Voltage Rating: 3x220/380V, 3x57.7/100V (3P4W); 3x380V, 3x100V (3P3W)
    3. Current Rating: 3x10(80)A; 3x1(6)A
    4. Frequency: 45~65Hz
    5. Commnunication: RS485 (MODBUS-RTU) And Infrared
    6. Multi-Rate: Spike, Peak, Valley And Flat KWh
    7. Extra Function: Cable Temperature Measurement And DO/DI
    8. Display: LCD (8 Digits)
    9. Dimension: 127*88*70mm (L*W*H)
    10. Wiring: 3-Phase 4wire; 3-Phase 3-Wire
    11. Installation: 35mm DIN Rail
    12. Standard&Certificate: IEC; CE; EAC
    View Details inquiry

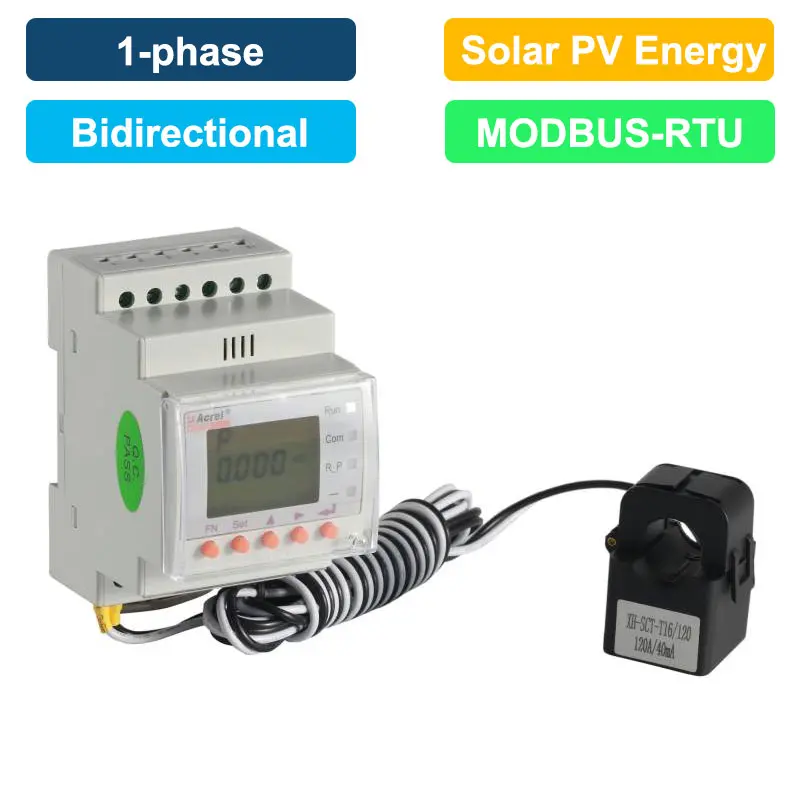

  • ACR10R-DxxT Bidirectional Single-phase Reflux Monitoring Energy Meter
    1. Measurement: 1-phase Active Power, Reactive Power, Current, Voltage and etc
    2. Current Rating: up to 300A (paired with external CTs)
    3. Communication: RS485 (MODBUS-RTU)
    4. Application: Using in distributed Solar PV and Anti-reflux Inverter
    5. Display: LCD Dispaly
    6. Dimension: 54*74*85mm (L*W*H)
    7. Installation: 35mm DIN Rail
    8. Power Supply: 85~265V AC or 100~350V DC
    9. Standard&Certificate: CE
    View Details inquiry
  • ACR10R-DxxT Bidirectional Three-phase Reflux Monitoring Energy Meter
    1. Measurement: 3-phase Active Power, Reactive Power, Current, Voltage and etc
    2. Current Rating: up to 300A (with CTs); up to 20000A (with Rogowski Coil)
    3. Communication: RS485 (MODBUS-RTU)
    4. Application: Using in distributed Solar PV and Anti-reflux Inverter
    4. Display: LCD Display
    5. Dimension: 54*64*84mm (L*W*H)
    6. Installation: 35mm DIN Rail
    7. Power Supply: 85~265V AC or 100~350V DC
    8. Standard&Certificate: CE
    View Details inquiry
  •  DTSD1352-C ADL3000-E/C 3-Phase Energy Meter work with Solis, Growatt,goodwe, Kstar, Sungrow Inverter
    1. Measurement: 3-Phase KWh (0.5S), Active Power, Reactive Power, Current, Voltage, Harmonic And Etc
    2. Voltage Rating: 3x220/380V, 3x57.7/100V (3P4W); 3x380V, 3x100V (3P3W)
    3. Current Rating: 3x10(80)A; 3x1(6)A
    4. Frequency: 45~65Hz
    5. Commnunication: RS485 (MODBUS-RTU) And Infrared
    6. Multi-Rate: Spike, Peak, Valley And Flat KWh
    7. Extra Function: Cable Temperature Measurement And DO/DI
    8. Display: LCD (8 Digits)
    9. Dimension: 127*88*70mm (L*W*H)
    10. Wiring: 3-Phase 4wire; 3-Phase 3-Wire
    11. Installation: 35mm DIN Rail
    12. Standard&Certificate: IEC; CE; EAC
    View Details inquiry
  • ACR10R-D10TE /CR10R-D16TE Single phase meter work with solis,Growatt,
    Goodwe, Kstar,Sungrow inverter
    1. Measurement: 1-phase Active Power, Reactive Power, Current, Voltage and etc
    2. Current Rating: up to 300A (paired with external CTs)
    3. Communication: RS485 (MODBUS-RTU)
    4. Application: Using in distributed Solar PV and Anti-reflux Inverter
    5. Display: LCD Dispaly
    6. Dimension: 54*74*85mm (L*W*H)
    7. Installation: 35mm DIN Rail
    8. Power Supply: 85~265V AC or 100~350V DC
    9. Standard&Certificate: CE
    View Details inquiry
  • ACR10R-D16TE4 Three-phase Energy Meter work with Solis,Growatt,
     Goodwe, Kstar, Sungrow inverter
    1. Measurement: 3-phase Active Power, Reactive Power, Current, Voltage and etc
    2. Current Rating: up to 300A (with CTs); up to 20000A (with Rogowski Coil)
    3. Communication: RS485 (MODBUS-RTU)
    4. Application: Using in distributed Solar PV and Anti-reflux Inverter
    4. Display: LCD Display
    5. Dimension: 54*64*84mm (L*W*H)
    6. Installation: 35mm DIN Rail
    7. Power Supply: 85~265V AC or 100~350V DC
    8. Standard&Certificate: CE
    View Details inquiry
  • GGF Isolated Power Panels

    1. Suitable for distribution system in group 2 medical location

    2. Using Q235A High Quality Cold Rolled Steel Plate

    3. Louver type heat dissipation fan

    4. Various installation types

    View Details inquiry
  • AIM Insulation Monitoring Device

    1. Adjustable response value

    2. LCD display

    3. Din 35mm

    View Details inquiry

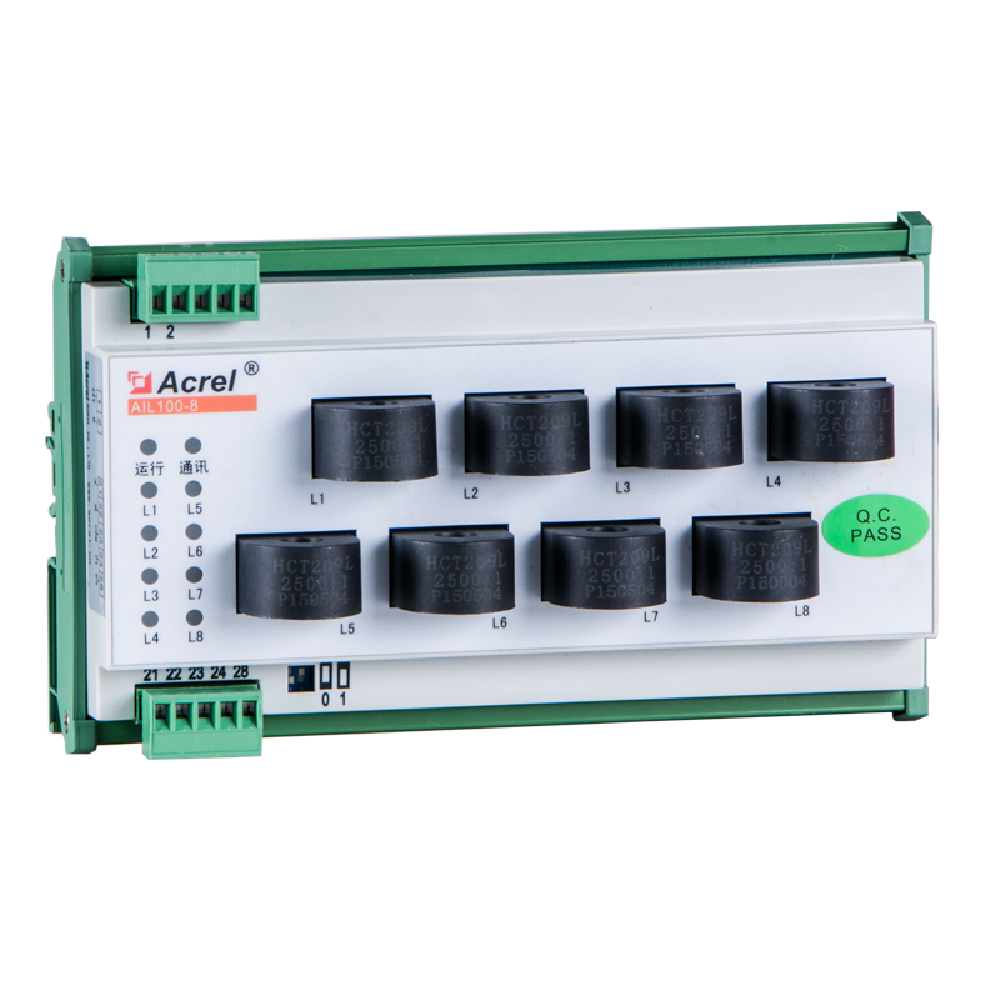

  • AIL Insulation Fault Locator

    1. Fixed Transformer

    2. Built-in matched resistance

    3. Din-rail mounting

    View Details inquiry
  • AID Remote Alarm Indicators

    1. Audible and visual alarm

    2. Installation of embedded wall

    3. LCD display

    View Details inquiry

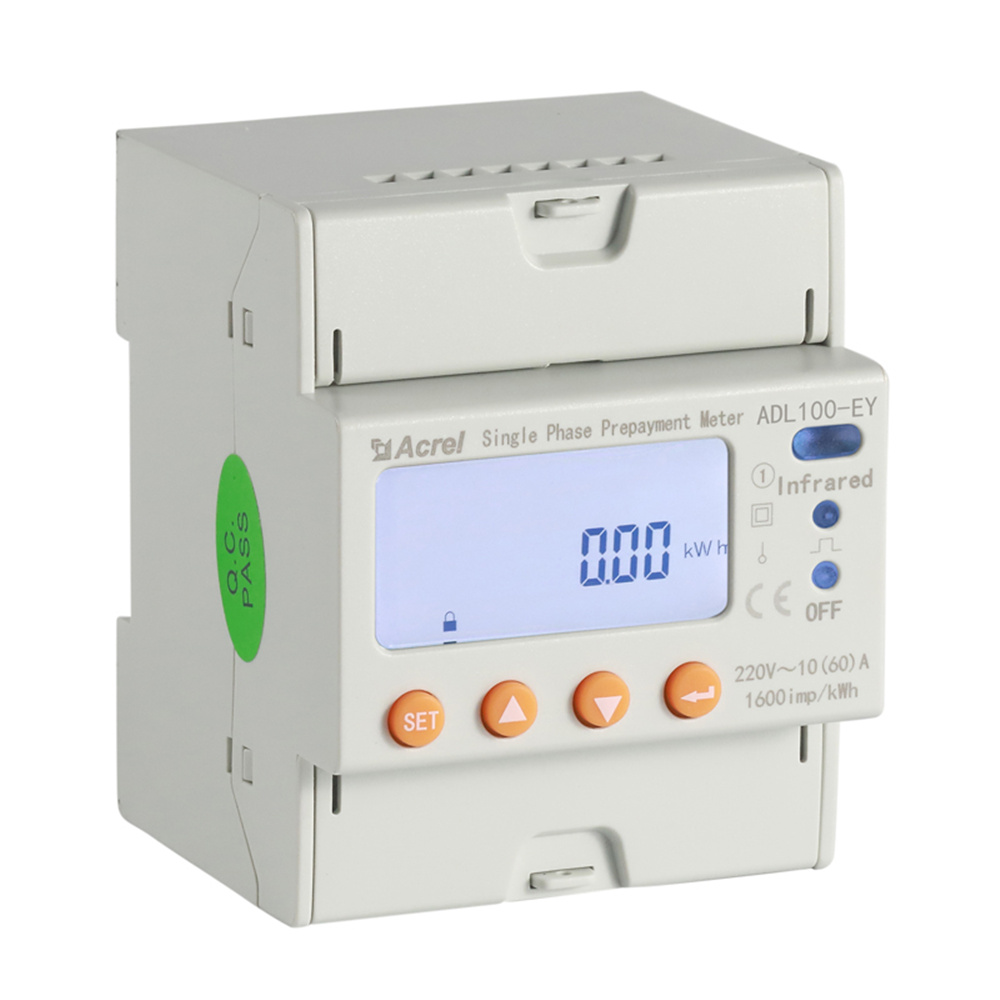

  • ADL100-EY Single Phase Prepaid Meter

    1. Application: Prepaid&Postpaid
    2. Measurement: 1-phase kWh, kVarh, Active Power, Reactive Power, Current, Voltage and etc
    3. Rated Voltage: 220~264Vac L-N & 45~65Hz
    4. Rated Current: 10(60)A AC (via direct connect)
    5. Communication: RS485 (MODBUS-RTU); Infrared
    6. Auto Control: Built-in Holding Relay for Switch On-off Control
    7. Multi-rate/tariff: 4 Tariff Rates and etc
    8. Standard&Certificate: CE

    View Details inquiry

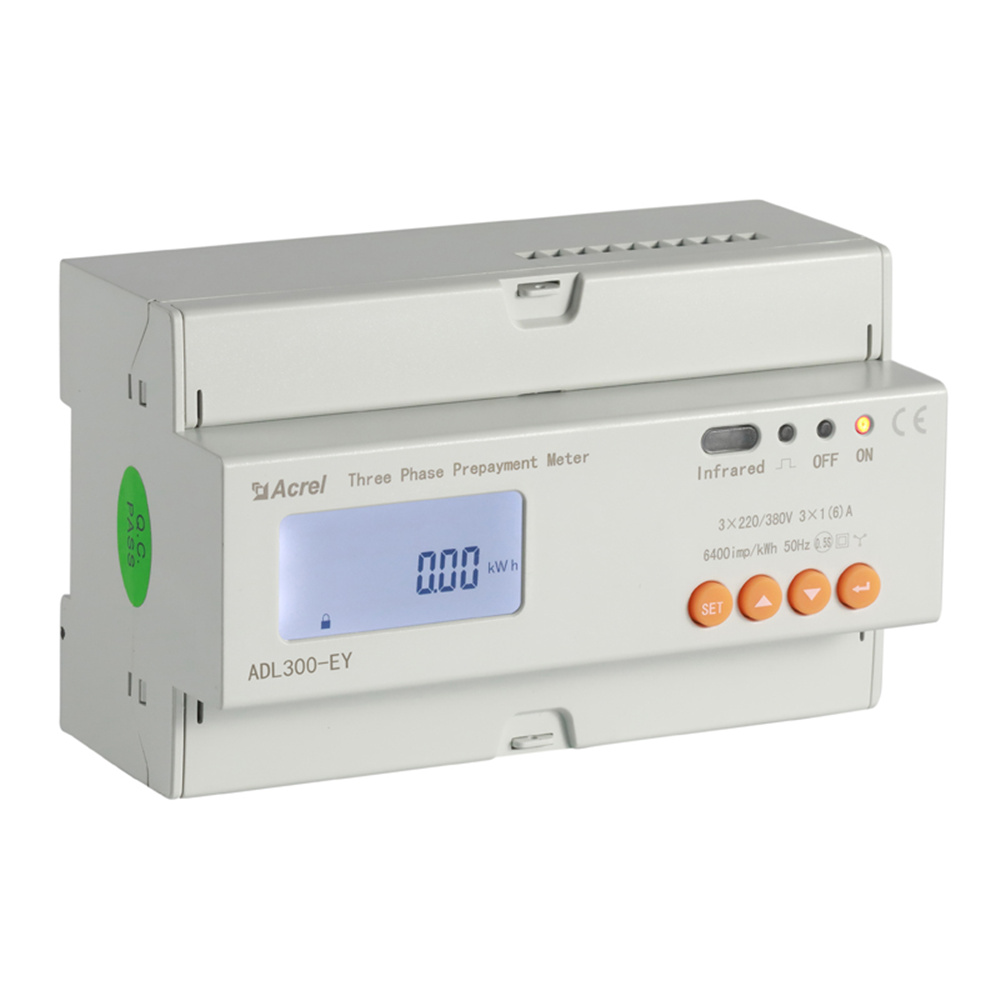

  • ADL300-EY Three Phase Prepaid Meter

    1. Application: Prepaid&Postpaid
    2. Measurement: 3-phase kWh, kVarh, Active Power, Reactive Power, Current, Voltage and etc
    3. Rated Voltage: 3x380~456Vac L-L & 45~65Hz
    4. Rated Current: 3x10(80)A AC (via direct connect); 3x1(6)A AC (via CTs)
    5. Communication: RS485 (MODBUS-RTU); Infrared
    6. Auto Control: Built-in Holding Relay for Switch On-off Control
    7. Multi-rate/tariff: 4 Tariff Rates and etc
    8. Standard&Certificate: CE

    View Details inquiry

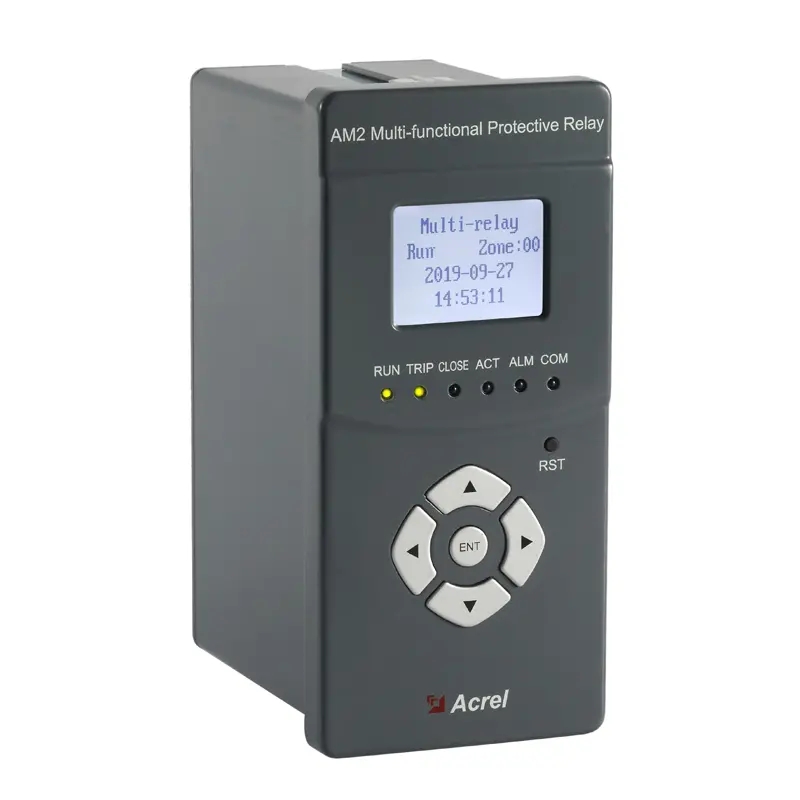

  • AM2 MV Protection Relay

    1. Feeder, Transformer protection

    2. RMS current values; RMS voltage values; frequency; Power factor; RMS active power

    3. Remote control; Local control; Programmable switchgear interlocking

    View Details inquiry
  • AMC96L-E4 Multifuncition Energy Meter

    1. Measurement: 3-phase AC kWh, kVarh, I, U, kW, kVar, Hz, cosφ and etc
    2. Accuracy: 1% (KWh); 0.5% (Active Power)
    3. Rated Voltage: 400V or 660V AC L-L (direct connect); 100V AC L-L (via PTs)
    4. Rated Current: 5A AC or 1A AC (via CTs)
    5. Power Supply: 85~265V AC/DC; 24V or 48V DC
    6. Communication: RS485 (MODBUS-RTU)
    7. SOE Funciton: Event&Demand&Extremum Record
    8. Harmonic Measurement: 2~31st and total Harmonic
    9. Analog Output: 4~20mA DC or 1~5V DC
    10. DI/DO Function: 2/4-channel DI&2-channel DO
    11. Standard&Certificate: CE Certificates

    View Details inquiry
  • APM Multifunciton Ethernet Meter

    1. Measurement: 3-Phase KWh, KVarh, KW, I, U, Hz, Cosφ, Current&Voltage Unbalance, 2~63rd
     Harmonic, Real-Time&Max Demand, Zero-Sequence Current, 4-Quadrant Energy And Etc
    2. Current Rating: -/5A AC; -/1A AC (According To CTs)
    3. Voltage Rating: 100V, 110V, 400V, 690V AC
    4. Frequency: 45~65Hz
    5. Accuracy: High accuracy Up To 0.2S (Optional)
    6. Communication (Main Body): RS485 (MODBUS-RTU)
    7. Communication (Expanded): PROFIBUS-DP; Ethernet; Secondary RS485
    8. Extra Function: 8DI/2DO; 8AI/4AO; SOE (With Standard 8GB SD Card, data logger); Multi-Rate
    9. Display: LCD Display
    10. Dimension: 96*96*90mm (L*W*H)
    11. Installation: Panel Embedded (Cut-Out --92*92mm)
    12. Power Supply: 85~265V AC/DC; 115~415V AC/DC
    13. Standard&Certificate: CE

    View Details inquiry

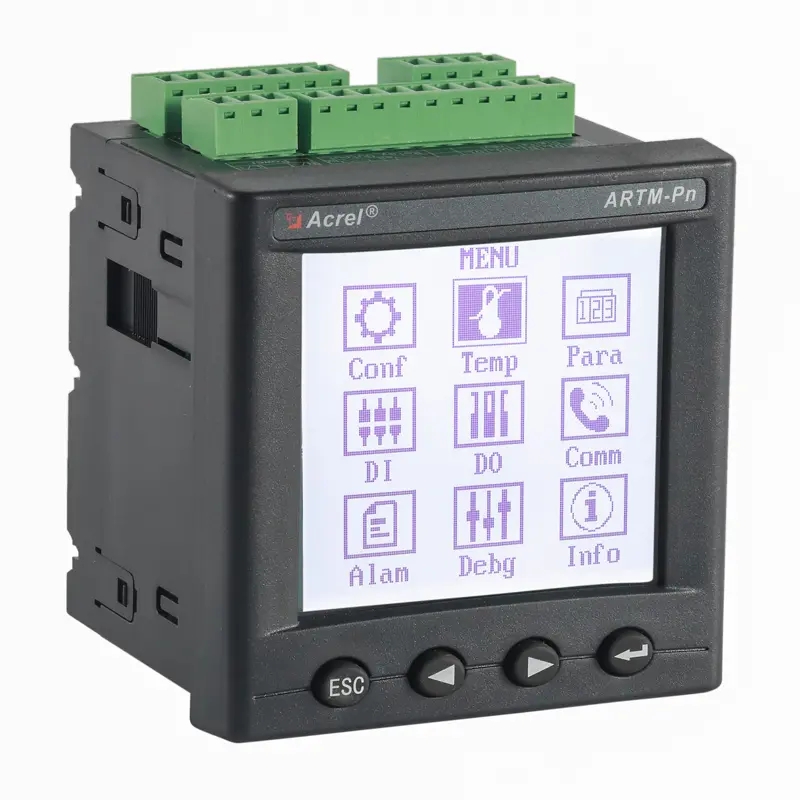

  • ARTM-Pn Wireless Temp Monitoring

    1. Receive&Display Temperature Data: From up to 60 ATE Temperature Sensors
    2. Communication Methods: GFSK (with ATE Temperature Sensor)
    3. Communication Distance: 150m in open Area & 15m in Building
    4. Extra RS485 Communication: MODBUS-RTU
    5. DO/DI Function: 2 Over-temp Alarm Relay Outputs & 4 Digital Inputs
    6. Dimension: 96*82*96mm (L*W*H)
    7. Installation: Panel Mounted (Cut-out Dimension--92*92mm)
    8. Electric Parameter Meausurement: U,I,P,Q,F,kWh,kVarh (Optional)

    View Details inquiry
  • ADL200 Single Phase Energy Meter
    1. Measurement: 1-Phase AC KWh, Active Power, Current, Voltage And Etc
    2. Accuracy: 1.0% (KWh)
    3. Frequency: 45~65Hz
    4. Rated Voltage: 220~264Vac (Direct Connect)
    5. Rated Current: 10(80)A AC (Direct Connect)
    6. Communication: RS485 (MODBUS-RTU)
    7. Multi-Rate/Tariff: 4 Tariff Rates And Etc
    8. Dimension: 90*36*65mm (L*W*H)
    9. Installation: 35mm DIN Rail
    10. Standard&Certificate: IEC; CE;CE-MID;EAC
    View Details inquiry
  • ADL400 Three Phase Enegry Meter
    1. Measurement: 3-Phase AC KWh, KVarh, U, I, P, Q, S, PF, F And Etc
    2. Accuracy: 0.5% (KWh)
    3. Frequency: 45~65Hz
    4. Rated Voltage: 3x380~456Vac L-L (Direct Connect); 3x100~120Vac L-L (Via PTs)
    5. Rated Current: 3x10(80)A AC (Direct Connect); 3x1(6)A AC (Via CTs)
    6. Communication: RS485 (MODBUS-RTU)
    7. Multi-Rate: 4 Tariff Rates And Etc
    8. Data Function: Frozen Data,Max Demand,Etc
    9. Harmonic: 2~31st  And Total Harmonic
    10. Standard&Certificate: IEC; CE;CE-MID; EAC

    View Details inquiry

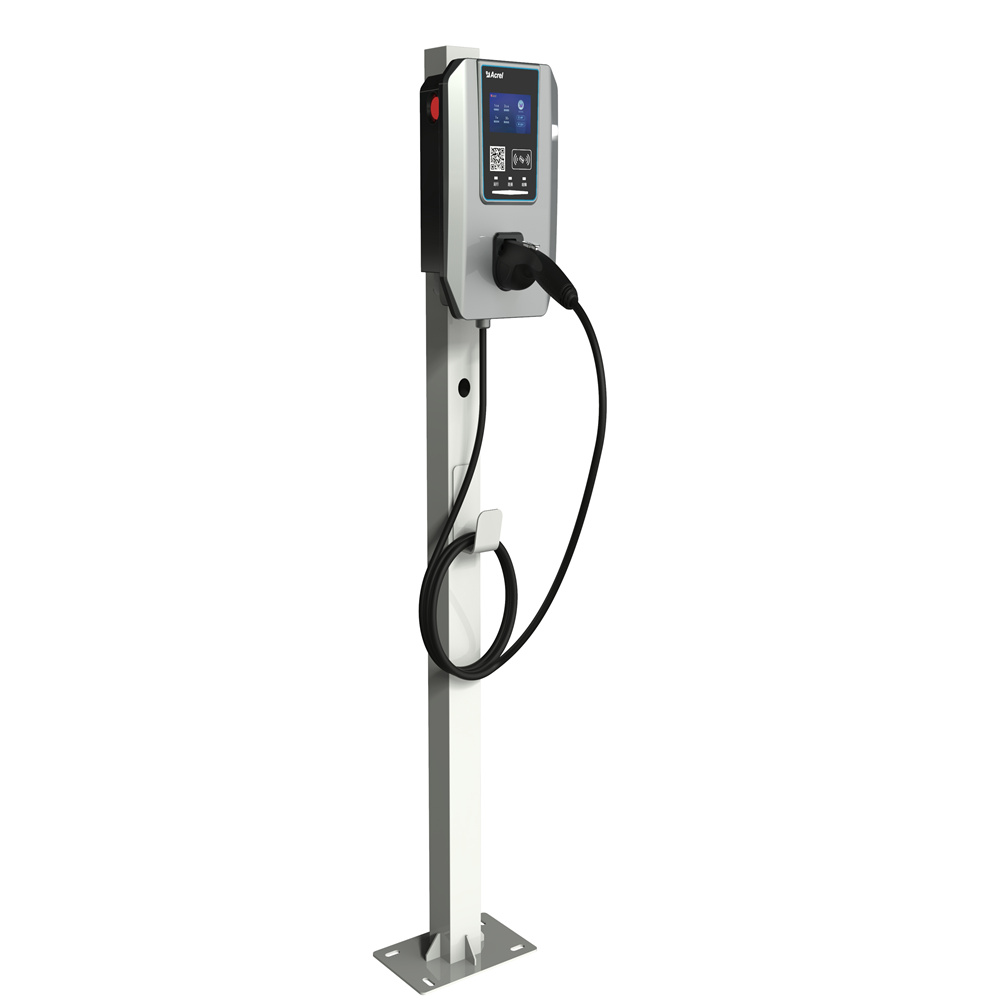

  • Automobile Charging Pile

    1. Swipe to charge + anti-theft and anti-touch

    2. Quickly eliminate danger + emergency power off button

    3. Computer cloud monitoring

    View Details inquiry
  • DJSF1352 DC Energy Meter

    1. Measurement: KWh, KVarh, Power, Current, Voltage And Etc
    2. Current Rating: -/75mV (With Shunt); -/4~20mA (With Hall Sensor)
    3. Voltage Rating: 0~1000V DC
    4. Application: DC Battery; Charging Pile; Solar PV And Etc
    5. Communication: RS485 (MODBUS-RTU)
    6. Extra Function: Dual DC Circuits Monitoring; Secondary RS485 (MODBUS-RTU); Built-In Bipolar Power Source (For Hall Sensors); DO/DI Function
    7. Display: LCD Display
    8. Dimension: 72*71*87.8mm (L*W*H)
    9. Installation: 35mm DIN Rail
    10. Power Supply: 85~265V AC/DC; 24V(±10%) DC; 48V(±10%) DC
    11. Standard&Certificate: CE

    View Details inquiry

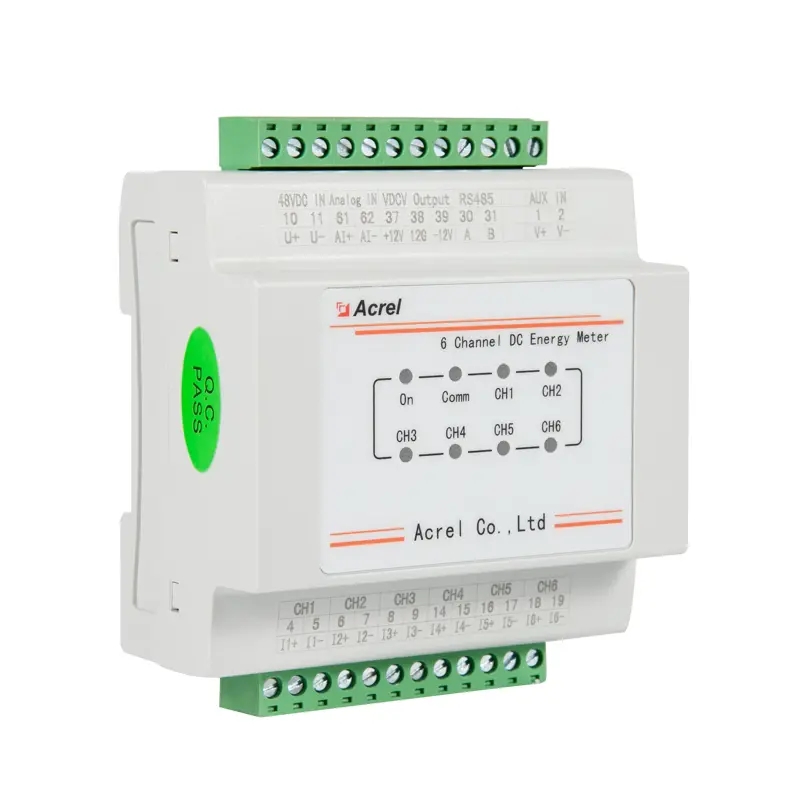

  • AMC16-DETT Multi-circuit DC Energy Meter for Tower Base Station

    1.6-channel RS485 communication protocol, standard or customized

    2. LED indicator display

    3. Rated U & I: total 200A/5V

    View Details inquiry

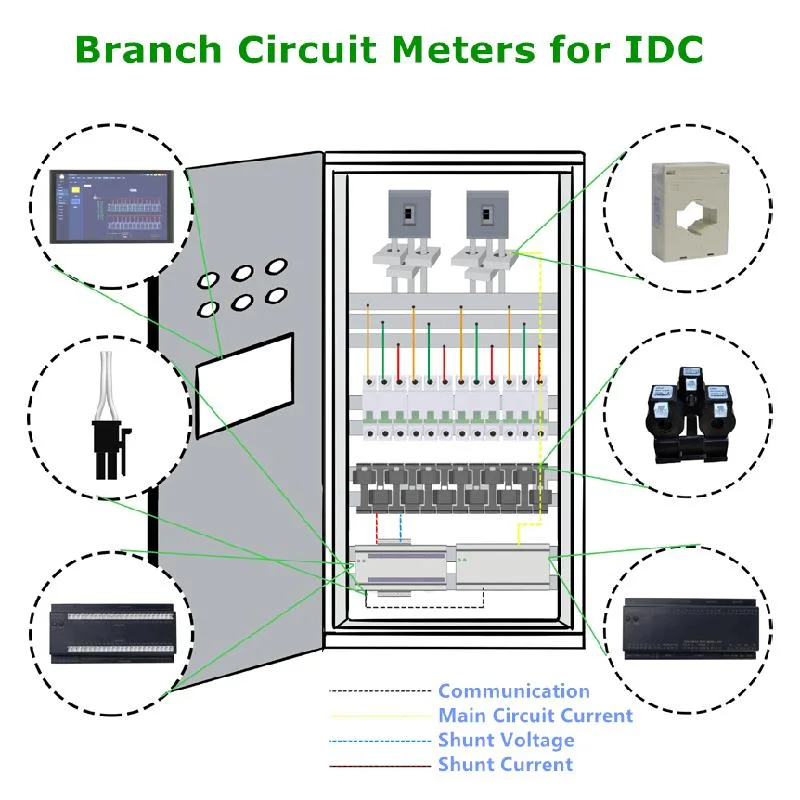

  • AMC16Z-FAK24/48  AMC16Z-FDK24/48 AC/DC Multi-Circuit/Branch Circuit Monitoring Energy Meter for Data Center/IDC/Tower Base Station

    1. Monitoring:  AC/DC Outgoing maxium 48 circuits Branch Circuits Multi-metering (AC1-phase & 3-phase DC 1- Phase)
    2. Measurement:  Voltage, Current, Frequency, Active Power, Reactive Power, Power Factor and etc
    3. Power Quality:  2nd~31st&Total Harmonic
    4. Communicaiton: RS485 (MODBUS-RTU)
    5. Rated Voltage: 220~264Vac L-N
    6. Rated Current: AC:  50mA AC (via -/50mA CTs) or DC 0~5V hall sensor
    7. Standard&Certificate: CE; IEC; LVD
    View Details inquiry

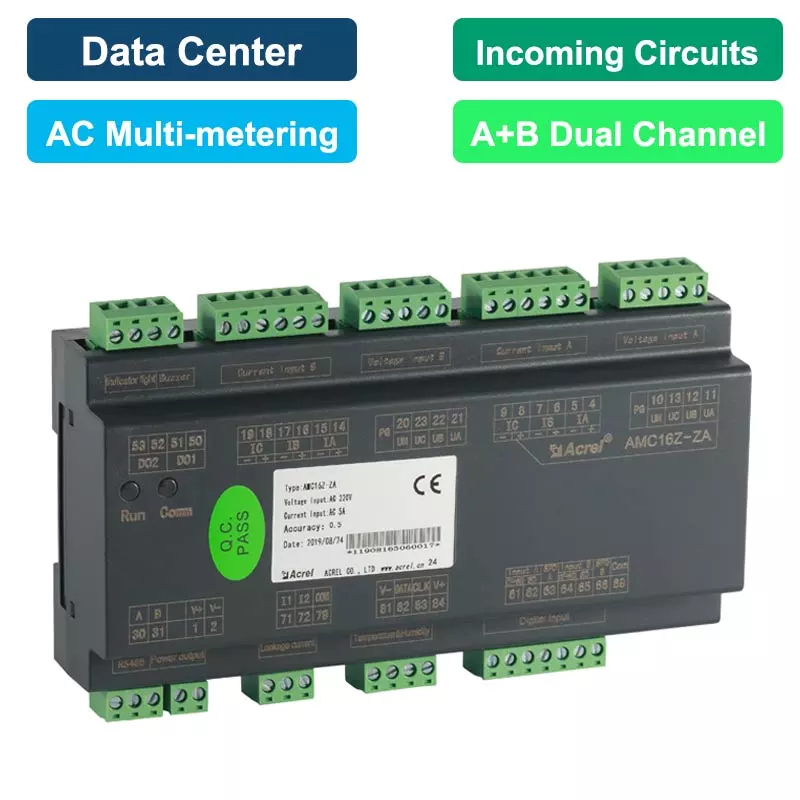

  • AMC16Z-ZA Dual-circuit/Branch Circuit Monitoring Energy Meter for Data Center/IDC/Towe Base Station

    1. Monitoring: Dual Independent AC Incoming Circuits 3-phase (For Data Center)

    2. Measurement: Voltage, Current, Frequency, Active Power, Reactive Power, Power Factor and etc

    3. Power Quality: 2nd~63rd&Total Harmonic, Current&Voltage Unbalance and etc

    4. Communicaiton: RS485 (MODBUS-RTU)

    5. Rated Voltage: 220~264Vac L-N
    6. Rated Current: 1(6)A AC (via CTs)
    7. Standard&Certificate: CE; IEC; LVD

    View Details inquiry
  • ADW210 3-Phase IoT Multi-Circuit Energy Meter for Buildings, factories Etc.
    1. Measurement: Up To 4-Channel 3-Phase KWh, KVarh, Current, Power, 2~31st Harmonic And Etc
    2. Voltage Rating: 3x220V/380V AC (3P4W)
    3. Current Rating: 5A, 100A, 400A Or 600A AC (With External CTs)
    4. Frequency: 45~65Hz
    5. Communication: RS485 (MODBUS-RTU)
    6. Extra Function: Wireless Communication (4G, WiFi, LoRa And Etc); Cable Temperature Measurement; DO/DI Function
    7. Display: LCD
    8. Dimension: 87.8*72*97.7mm（L*W*H) --- Main Body
    9. Wiring: 3-Phase 4-Wire Connection
    10. Installation: 35mm DIN Rail
    11. Standard&Certificate: CE; LVD
    View Details inquiry
  • AMC16-DETT Multi-circuit DC Energy Meter  for Tower base Station

    1. 6- channel RS485 communication protocol, standard or customized

    2. LED indicator display

    3. Rated U & I: total 200A/5V

    View Details inquiry
  • ADF400L 1-phase&3-phase Muilti-circuit Energy Meter For Buildings , Factories etc
    1.  Application: Prepaid&Postpaid
    2. Monitoring:  Up To 36 Circuits 1-Phase Or 12 Circuits 3-Phase Or Mixed
    3. Measurement: 1-phase&3-phase kWh (Class 0.5S), kVarh, Active Power, Reactive Power, Current, Voltage and etc
    4. Rated Voltage: 3x220/380V (50Hz)
    5. Rated Current: 80A AC (direct connection); 3x1(6)A AC (via CTs)
    6. Communication (Main Body): RS485 (MODBUS-RTU); Ethernet; Infrared
    7. Communication (Expanded): 4G; WiFi; LoRa
    8. Remote Control: DO&DI
    9. Installtion: 35mm DIN Rail
    10. Power Supply: 3*220/380V or 220V AC
    11. Standard&Certificate: CE
    View Details inquiry

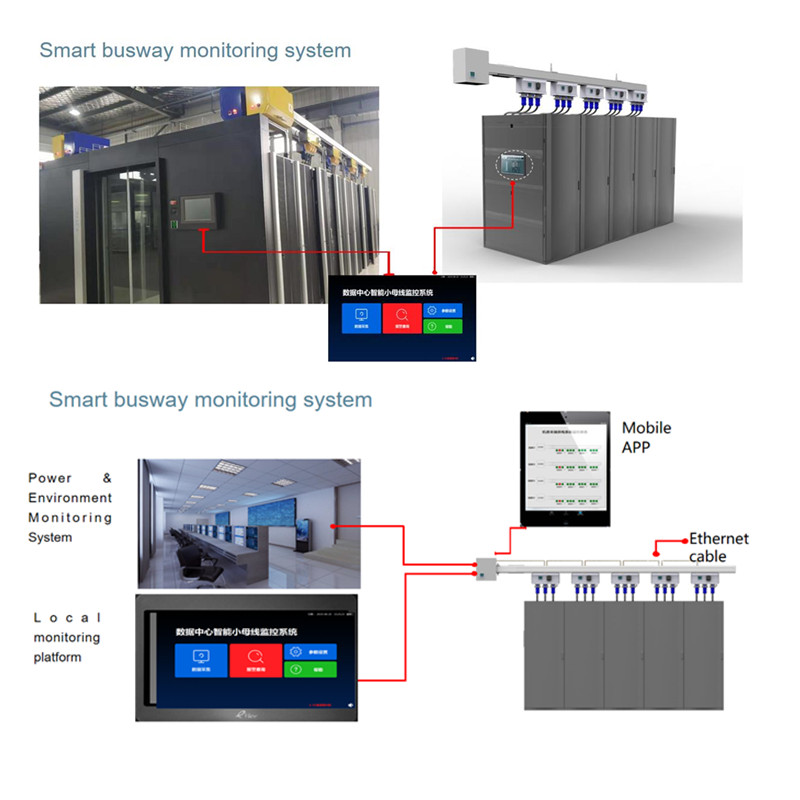

  • AMB100 Busway Monitoring Meter for Data Center

    1. 2 dry-contact inputs

    2. 45-65Hz

    3. 3x220/380VAC

    4. DIN 35mm

    View Details inquiry
  • AMB200 Busway Temperature Monitoring Device

    1. Built-in probe to take power (AC/DC 85-265V)

    2. RS485/Modbus-RTU or Lora communication

    3. 4 channels temperature, humidity

    View Details inquiry
-->

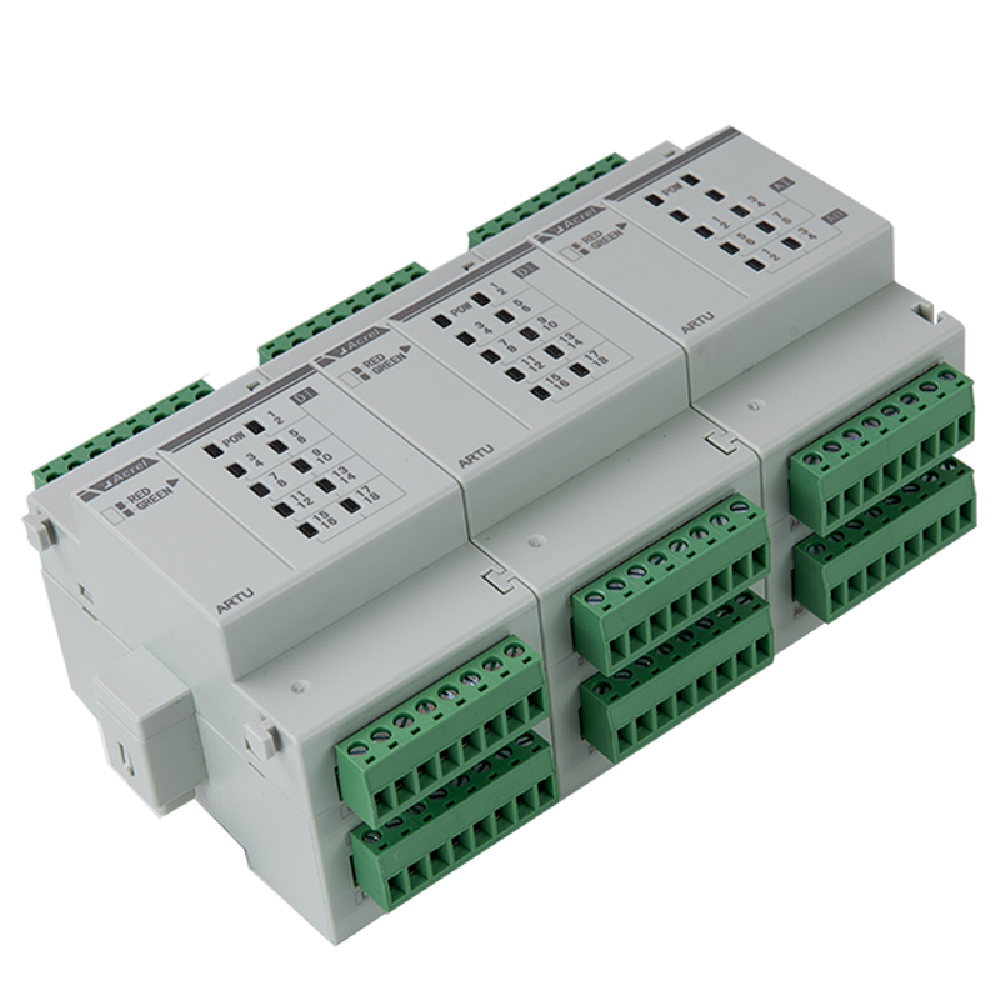

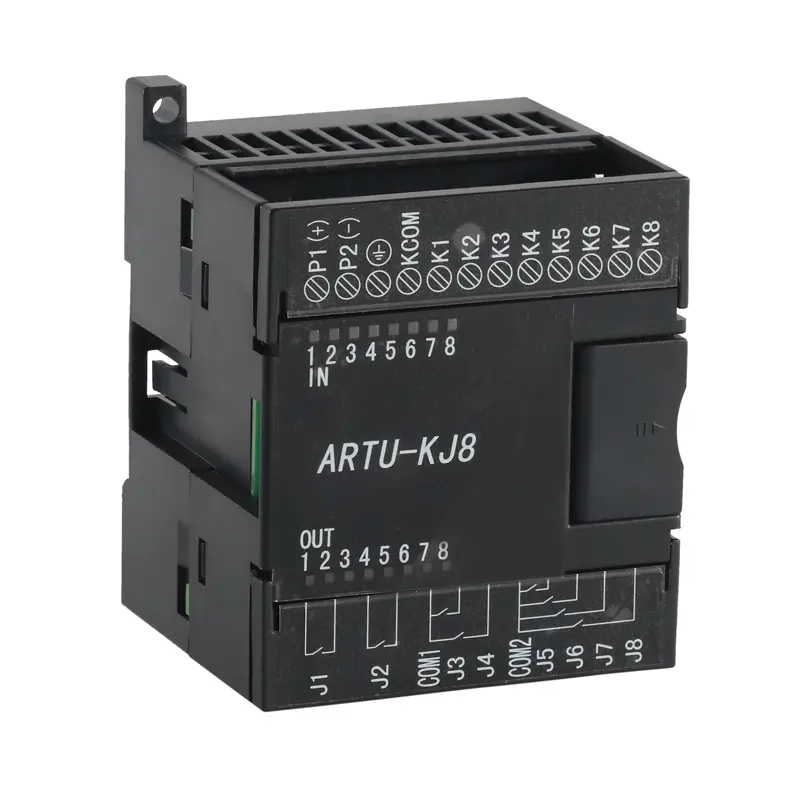

  • ARTU Remote Terminal Unit

    1. RS485 (MODBUS -RTU) communication

    2. Channel state indicator and communication state indicator

    3. 24VDC (±10%); 220VAC, allow AC/DC 85~265V

    View Details inquiry
  • BA Smart Current Transmitter

    1. Direct AC current measurement up to 600A

    2. Overload: 1.2 times of rated value

    3. Application: Industrial automation

    View Details inquiry
  • PZ96B-DI Digital Power Meter

    1. Measure voltage, current, power, forward and reverse power in DC system

    2. Local display+RS485(MODBUS-RTU)+Set Parameters

    3. DI/DO, Relay alarm output

    View Details inquiry

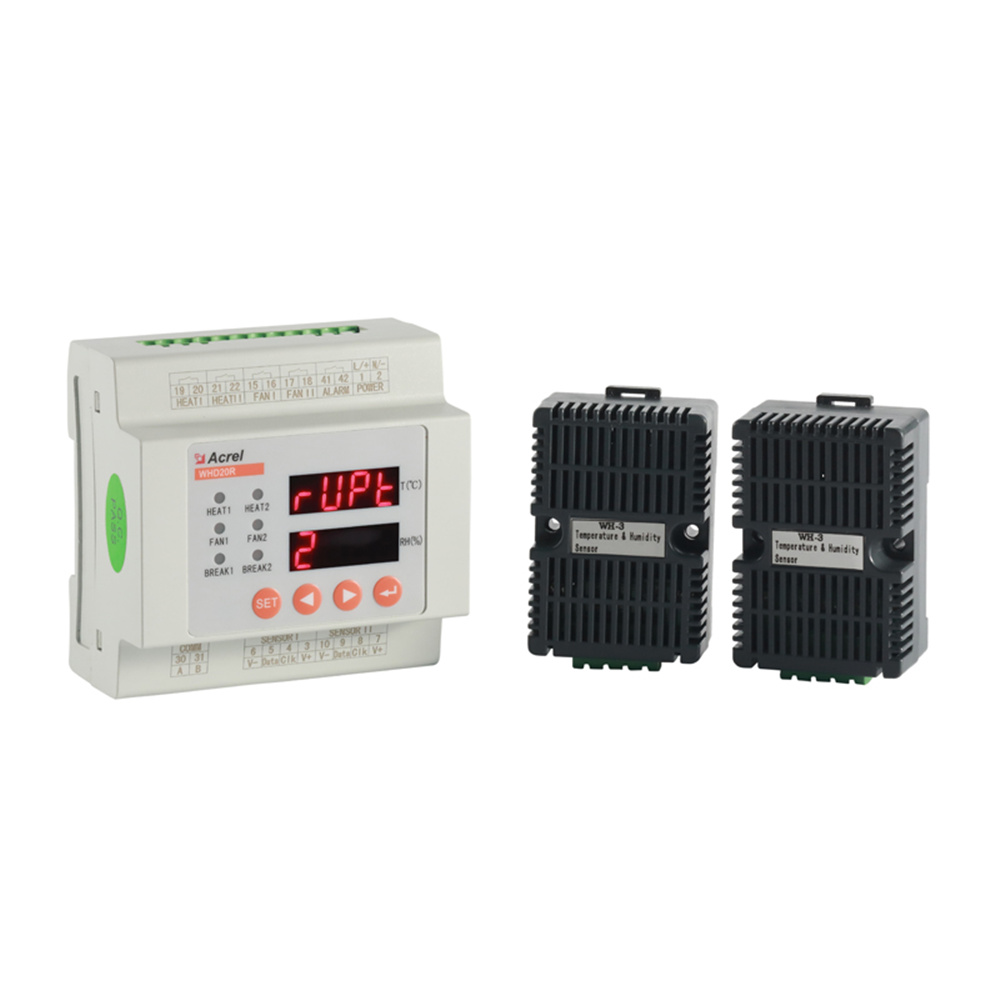

  • WHD Temp&Humidity Controller

    1. Optional functions: alarm, communication

    2. Temperature and humidity measuring & controlling

    3. DIN rail mounted

    View Details inquiry
  • ARD Motor Protection Relay

    1. RS485 (Modbus-RTU) Communication

    2. LCD display for U, I, P, Q etc

    3. Rated U & I: AC380/660V, rated current up to 800A

    View Details inquiry
  • ARTU Remote Terminal Unit

    1. Optional function: communication

    2. Temperature and humidity measuring & controlling

    3. DIN rail mounted

    View Details inquiry
  • ATE Wireless Temp Sensor

    1. Range of Measurement: -50℃~+125℃
    2. Communication: GFSK Wireless Communication
    3. Application: Switchgear, Busbar, Bus duct, Electric contact, Cable joint, Rain main unit and etc
    4. Installation: Bolted, Magnetic, Belt, Alloy Sheet Fixed
    5. Protection Level: IP68 (Optional)
    6.  Power Supply: Battery or CT Sensing Power
    7. Standard&Certificate: CE

    View Details inquiry
  • BD Current Tranducer

    1. Accuracy: Class 0.5

    2. Analog Output: DC 0-5V, 1-5V, 0-10V; 0-20mA,4-20mA

    3. Power supply: DC12V/DC24V

    4. Input: 4~20mA/0~20mA DC or 0~500V AC

    View Details inquiry
  • IOT Energy Monitoring System/EMS
    1.Wireless Power Monitoring System/PMS
    2.Real-time Monitoring of Electricity
    3.Support APP & WEB Data Checking
    4.Energy Report,Fault Alarm
    5.Easy Installation, No Need Gateway Debugging
  • Building Energy Management System
    1.Building Energy Monitoring System/EMS
    2.Provide Data Support for Save Energy
    3.Energy Report, Fault Alarm,Energy Flow Chart
    4.Monitor Energy by Dept, Region, Energy Types
    5.Support APP & WEB Data Checking
  • Solar Power Monitoring System
    1.Real Time Monitor PV station State, Electric Generation
    2.Monitor PV modules Distribution
    3.Monitor Inverter State/Environment/AC Power Distribution Cabinets etc.
    4.Analyze Daily Power Generation Trend
CONTACT US
